12-63mm PPR Pipe Extrusion Line | PPR pipe production line machine | 30kw

Brand Name XPM
Certification CE,ISO
Model Number 12-63MM
Minimum Order Quantity 1 SET
Price 20,000-30,000 USD/SET
Delivery Time 45 WORKING DAYS
Payment Terms L/C, T/T
Supply Ability 20 SETS PER MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Contactor Brand Siemens Raw Material PVC
Color Customized Screw Conical Twin Screw
Warranty 1 Year Inverter ABB
Voltage 380V Or Customized Application Plastic Pipe
Output 40-80Kg/H Motor Power 30kw
High Light

25kw PVC Pipe Extrusion Line


63MM PVC Pipe Extrusion Line


corrugated pipe forming machine 60Kg/H

Leave a Message
Product Description

PP PE PPR Pipe Making Machine/ Production Line/ Extrusion Line

12-63mm PPR Pipe Extrusion Line | PPR pipe production line machine | 30kw 0


Description of PPR pipe making machine:


1. This production line can be used to produce 12-63mm PPR PE PP pipes

2. PPR pipes have features of high temperature resistance, resistant to corrosion and abrasion, high intensity, good flexibility, etc.

3.They are widely used in fields of auto wire, electric thread-passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes of air conditioner and washing machine, etc


12-63mm PPR Pipe Extrusion Line | PPR pipe production line machine | 30kw 1

Process flow of PPR pipe making machine:

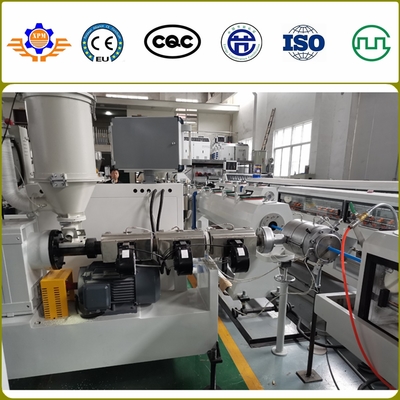

Our single screw extruders are featured high level technical solution such as screw geometry that is suitable for processing the plastic pipe extrusion. We use high wear resistant screw and barrel to make accurate control of melt conditions, homogenous temperature and pressure without variation and surging.

We use special gearbox for the extruder, which has axial bearings. Transfer the motor to the screw. For minimizing electricity consumption, we use the famous brand of driving motor of “SIEMENS” on our Extruder. Automation system designed with PLC and touch panel controller can be selected.

12-63mm PPR Pipe Extrusion Line | PPR pipe production line machine | 30kw 2




Our die-head designing gives ideal viscosity to melt material for pipe producing. It gives tube or shape to plastic after processing. All faces the plastic in contact with is polish, so that frication losses minimized.

We produce single layer, two layer and multi layer pipe die-heads. Foil cover head. Over steel pipe plastic covering die-head and other special die-head.

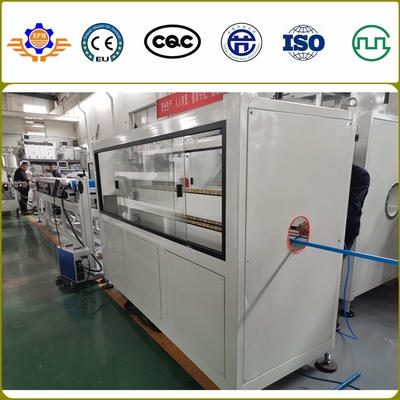

  • Vacuum Tank:

The Vacuum Tanks are manufactured with stainless steel.

Our nozzles designing for maximum cooling performance. Cooled water sprinkles to hot plastic pipe outside face from the nozzles.

With high power water pump, cooled water can reach to pipe completely.

Our vacuum tank’s pressure can be adjusted, so vacuum pressure can be fixed according to pipe requirement.

We sealing gasket for every lid on the vacuum tank. This stops vacuum leakage and minimizing energy consumption.

  • Haul-off:

With the material we have used in our haul-off, we have very good adhesion to the pipe and ensure slip prevented.

The needed speed for setting of pallets can be changed with electrical inverter. Different line speeds are adjusted by using control panel easily.

We manufacture haul-off depending on pipe diameter from 2 pallets to 10 pallets.

Our haul-offs can work synchronously with pipeline. As the extruder speed increasing automatically, haul-offs speed is increased.

12-63mm PPR Pipe Extrusion Line | PPR pipe production line machine | 30kw 3

  • No Swarf / Dust Cutter:

The planetary saw cuts the pipe at designed length without any burr.

The cutting speed during the cutting is synchronous with the line speed by PLC, so accurate length is provided.

Pipe length to be cut is easily adjusted via the touch screen.

Pipe length measure by encode so desired length can cut precisely.

  • Tipping Table:

It operates on pneumatic cylinder.

  • Pipe coiler:

The coiler is applied for winding PE pipes, corrugated pipes and dripping pipes.

We use torque motor for positioning pipes on the coil, that provides accuracy of coiling.

Our coilers can coil dia.16mm pipe up to dia. 125mm pipe. With the torque setting, tension of the pipe coming from the extrusion line can be adjusted easily.




XPM-63 20-63 SJ65/33 22AC
XPM-110 20-110 SJ65/33 55AC
XPM-160 75-160 SJ75/33 90AC
XPM-250 90-250 SJ75/33 110DC
XPM-315 110-315 SJ90/33 160DC
XPM-450 160-450 SJ90/33 160DC
XPM-630 315-630 SJ120/33 280DC
XPM-800 500-800 SJ150/33 315DC
XPM-1200 710-1200 SJ150/34 400DC


12-63mm PPR Pipe Extrusion Line | PPR pipe production line machine | 30kw 4
