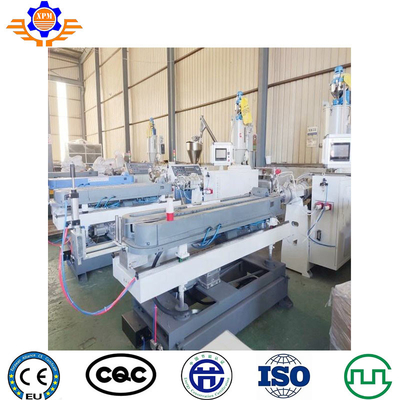

Single Wall PE Corrugated Pipe Making Machine 380V Production Line Plastic

Place of Origin ZHANGJIAGANG,CHINA
Brand Name XPM
Certification CE,ISO
Model Number 6-50MM
Minimum Order Quantity 1 SET
Price 20,000-25,000 USD/SET
Packaging Details WOODEN CASE PACKING AND PLASTIC FILM
Delivery Time 45 WORKING DAYS
Payment Terms L/C, T/T
Supply Ability 20 SETS PER MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Contactor Brand Siemens Raw Material PE, PP, ABS, HDPE, PPR
Color Customized Screw Conical Twin Screw
Warranty 1 Year Inverter ABB
Voltage 220V,380V Or Customized Application Plastic Pipe
Output 40-100Kg/H Motor Power 25-440Kw
High Light

Single Wall PE Corrugated Pipe Line

,

380V Corrugated Pipe Making Machine

,

Siemens Plastic Corrugated Pipe Making Machine

Leave a Message
Product Description

Plastic Single Wall Corrugated Pipe Line PP Making Machine China Manufacturer PE Production LineSingle Wall PE Corrugated Pipe Making Machine 380V Production Line Plastic 0

SAIJIA MACHINERY

Continously Innovating And Manufacuturing Of Plastic Machinery

ZHANGJIAGANG SAIJIA MACHINERY TECHNOLOGY CO.,LTD.

Our main products are: plastic pipe extrusion line and plastic machine.

The main products are popular exported to international market,including Russia,Australia, Southeast Asia,Middle East,East Europe.Africa and other countries.



PE PP PVC corrugated pipe production line

Single-walled high-speed machine: module replacement is convenient, the production speed, high efficiency, stable performance can be high, steel tubes are of good quality and beautiful appearance.

Process flow:

Raw material + master batches → mixing → vacuum feeding → material dryness → single screw extruder → extrusion mould → corrugation forming machine → meter measurer→ double winder → finished product inspecting & packing

Line Model Extruder model Production scope Output Total Power Production speed
PE-40 SJ-45/30 Φ6-40mm 60kg/h 25KW 6-10m/min
PE-63 SJ-65/30 Φ12-63mm 80kg/h 30KW 6-10m/min
PA-40 SJ-45/28 Φ6-40mm 60kg/h 25KW 6-10m/min
PVC-50 SJ51/105 Φ16-50mm 100kg/h 27KW 6-10m/min



HDPE / PP double wall corrugated pipe is widely used.By the company absorbing foreign advanced technology, independent research and development of HDPE double-wall corrugated pipe production line, with a number of patented technologies, production diameter range 63mm -1000mm . High degree of automation, stable and high yield. New high efficiency single screw extruder, extrusion volume. Forming machine adopts horizontal structure, shuttle transmission, sealed water-cooled, vacuum forming, the original line double flaring.

Q: What is your advantage in this line?

A: Dear customer, we only focus on plastic extrusion machinery over 20 years with rich experience and strong technology support , manufacturing and development. We continues to improve our machinery at market demands and customer’s feed back , more reasonable design and top quality .

Single Wall PE Corrugated Pipe Making Machine 380V Production Line Plastic 1

Double wall corrugate pipe production line



Single Wall PE Corrugated Pipe Making Machine 380V Production Line Plastic 2

PE PP corrugated pipe machinery

Single Wall PE Corrugated Pipe Making Machine 380V Production Line Plastic 3

PE single wall corrugated pipe line





Single Wall PE Corrugated Pipe Making Machine 380V Production Line Plastic 4

PE corrugated pipe making machine

If you want to know more about Plastic Pipe Extrusion Line, inquiry us now!



ZHANGJIAGANG SAIJIA MACHINERY TECHNOLOGY CO.,LTD.

Zhangjiagang Saijia was established in 2000. The production experience is mature and rich. Among them, it has been exporting for more than 20 years, and more than 100 countries have exported. The annual export turnover is about 15 million US dollars. Our company's production base covers more than 50,000 square meters. , Modern office and production room more than 35,000 square meters, with experienced high-quality staff team, first-class equipment, perfect and effective quality assurance system, advanced and complete testing equipment.





Workshop

We know the quality is the life of our company. Our company insists to manufacture all machine units by ourselves in order to control quality strictly by our quality inspectors. To implement this concept, we have built our own tooling and CNC workshop. Even if some parts from our certified supplier, our quality inspector will check these parts before entering into our warehouse.


Warmly welcome to visit our workshop, and sincerely hope we can have long term cooperation in near future!



Single Wall PE Corrugated Pipe Making Machine 380V Production Line Plastic 5

FAQ

1) Are we manufacture or trade company?
We are manufacture,have 20 years' experiences in this field.

2) What kind machines we produce?
Our factory produce plastic pipes machines, plastic machine.

3) What kind payment we accept?
Payment term like T/T

4) How long we need to produce the machines?
According to different machine model and configuation, we need different time, like 40 days to 2 months.

5) Will the machine be delivered on time ?
Sure,we will deliver your machine up recieving the balance payment.

6) How about the machine quality?
Our machine quality is reliable.We select every parts on the machine strictly and production and installation is done by
professional workers.We test each production step for the best machine.

7) How about the price?
You know ,the goods counts the the price.We select the best machine raw material such as siemens electrics,schneider and ABB etc.We will provide you the best machine with best price.

8) How long is your machine’s guarantee time?
One year

9) What can you provide for after sale service?
We can send engineers to your factory for installation and training.also 24 hours on-line service for you.
