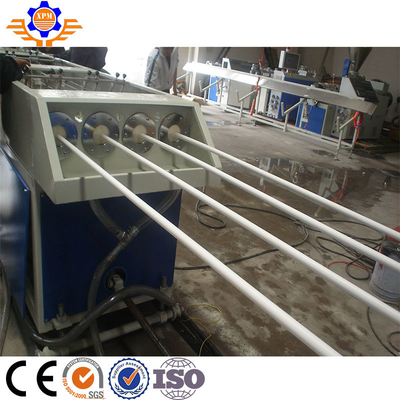

20 To 50MM PVC Tube Making Machine PVC Pipe Extruder Conical Twin Screw Extrusion Machine
|Contactor Brand||Siemens||Raw Material||PVC|
|Color||Customized||Screw||Conical Twin Screw|
|Voltage||220V,380V Or Customized||Application||Plastic Pipe|
20MM pvc pipe extruder,
50MM pvc pipe extruder,
250Kg/H twin screw extrusion machine
20-50MM PVC Tube Making Machine PVC Pipe Extruder Conical Twin Screw Extruder
Continously Innovating And Manufacuturing Of Plastic Machinery
ZHANGJIAGANG SAIJIA MACHINERY TECHNOLOGY CO.,LTD.
Our main products are: plastic pipe extrusion line and plastic machine.
The main products are popular exported to international market,including Russia,Australia, Southeast Asia,Middle East,East Europe.Africa and other countries.
1. It has good tensile and compressive strength: but its flexibility is not as good as other plastic pipes.
2. Low fluid resistance: The wall of PVC-U pipe is very smooth and has little resistance to fluid. Its roughness coefficient is only 0.009. Its water delivery capacity is 20% higher than that of cast iron pipes of the same pipe diameter and 40% higher than that of concrete pipes.
3. Excellent corrosion resistance and chemical resistance: PVC-U pipes have excellent acid resistance, alkali resistance, and corrosion resistance, and are not affected by damp water and soil pH. No anti-corrosion treatment is required when laying pipelines.
4. Anti-bite: PVC-U tube is not a source of nutrition, so it will not be corroded by rodents. According to a test conducted by the National Sanitation Foundation in Michigan, rats will not bite PVC-U pipes.
5. It has good water tightness: the installation of PVC-U pipes, regardless of whether it is connected by bonding or rubber ring, has good water tightness.
6. Performance test: curing time, shrinkage, splitting strength, tensile performance, peeling strength, thermal stability, pot life, storage period, release of harmful substances.
If you want to know more about Plastic Pipe Extrusion Line, inquiry us now!
PVC Pipe Extrusion Line.
Our company has full range of PVC pipe extrusion line, including four cavity pipe extrusion line, double cavity pipe extrusion line and large diameter pipe extrusion line. Our company will also provide basic formula for PVC pipe production, customer can adjust easily based on the formula. We manufacture machines for production of different PVC pipes, including U-PVC, C-PVC, M-PVC, PVC-O pipes, etc.
Our PVC pipe extrusion line can produce from size of minimum 16mm to 1000mm with single layer or multi-layer.
|Model||Pipe Range (mm)||Output Capacity (kg/h)||Main Motor Power (kw)|
|PVC32SS*||16 - 32 (×4)||180 - 250||22 - 37|
|PVC63||16 - 63||180 - 250||22 - 37|
|PVC63SS*||16 - 63 (×2)||250||37|
|PVC110||20 - 110||250||37|
|PVC160||50 - 160||250||37|
|PVC250||75 - 250||450||55|
|PVC450||110 - 450||450 - 800||55 - 110|
|PVC630||250 - 630||800||110|
|PVC800||315 - 800||1000||132|
|PVC1000||400 - 1000||1200||160|
|S* means double-strand/cavity, two pipes produced at same time.
SS* means four-strand/cavity, four pipes produced at same time.
|Production Line Parameter (for reference only, can be customized)|
ZHANGJIAGANG SAIJIA MACHINERY TECHNOLOGY CO.,LTD.
Zhangjiagang Saijia was established in 2000. The production experience is mature and rich. Among them, it has been exporting for more than 20 years, and more than 100 countries have exported. The annual export turnover is about 15 million US dollars. Our company's production base covers more than 50,000 square meters. , Modern office and production room more than 35,000 square meters, with experienced high-quality staff team, first-class equipment, perfect and effective quality assurance system, advanced and complete testing equipment.
We know the quality is the life of our company. Our company insists to manufacture all machine units by ourselves in order to control quality strictly by our quality inspectors. To implement this concept, we have built our own tooling and CNC workshop. Even if some parts from our certified supplier, our quality inspector will check these parts before entering into our warehouse.
Warmly welcome to visit our workshop, and sincerely hope we can have long term cooperation in near future!
International certification, verification certificates of equipment include:CE electrical certificate, CE mechanical certificate, ISO quality management certificate, Nigerian quality certificate etc.
1) Are we manufacture or trade company?
We are manufacture,have 20 years' experiences in this field.
2) What kind machines we produce?
Our factory produce plastic pipes machines, plastic machine.
3) What kind payment we accept?
Payment term like T/T, L/C.
4) How long we need to produce the machines?
According to different machine model and configuation, we need different time, like 40 days to 2 months.
5) Will the machine be delivered on time ?
Sure,we will deliver your machine up recieving the balance payment.
6) How about the machine quality?
Our machine quality is reliable.We select every parts on the machine strictly and production and installation is done by
professional workers.We test each production step for the best machine.
7) How about the price?
You know ,the goods counts the the price.We select the best machine raw material such as siemens electrics,schneider and ABB etc.We will provide you the best machine with best price.
8) How long is your machine’s guarantee time?
9) What can you provide for after sale service?
We can send engineers to your factory for installation and training.also 24 hours on-line service for you.
