Plastic Pipe Manufacturing Machine 37Kw Pvc Pipe Extrusion Machine Line

Brand Name XPM
Certification CE,ISO
Model Number 20-50MM
Minimum Order Quantity 1 SET
Price 20,000-25,000 USD/SET
Delivery Time 45 WORKING DAYS
Payment Terms L/C, T/T
Supply Ability 20 SETS PER MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Contactor Brand Siemens Raw Material PVC
Color Customized Screw Conical Twin Screw
Warranty 1 Year Inverter ABB
Voltage 220V,380V Or Customized Application Plastic Pipe
Output 250Kg/H Motor Power 37Kw
High Light

250Kg/H plastic pipe manufacturing machine


300kg plastic pipe manufacturing machine


37Kw pvc pipe extrusion machine line

Leave a Message
Product Description

Plastic Pipe Manufacturing Machine 37Kw Pvc Pipe Extrusion Machine Line

Description of Components:


1. Extruder: adopting conical twin-screw extruder, unique designed screw, realizing the shorting plasticizing time, good compounding and excellent plasticization.


2. Gearbox: adopting super quality gearbox and reducer, with a nice outline, stable running, low noise and long service time.


3. Extruding barrel temperature controlling system: adopting cast aluminum heaters with stainless steel covers, wind cooling system, ensuring good features of cooling and heating, precision temperature controlling.


4. Screw and barrel: screw core installing with internal temperature controlling system, barrel equipped with vacuum degassing system can get rid of the waste gas from the raw material which can guarantee super quality of the products.


5. Driving system: adopting A.C motor, using FUJI or ABB inverters which provide stable torque output and various speed.


6. Vacuum calibrating tank: with two vacuum chambers which can make sure the perfect roundness of the pipe, spraying water cooling, equipped with a temperature controller, realizing automatic discharging the water, the main body of the tank made of stainless steel, long service time.

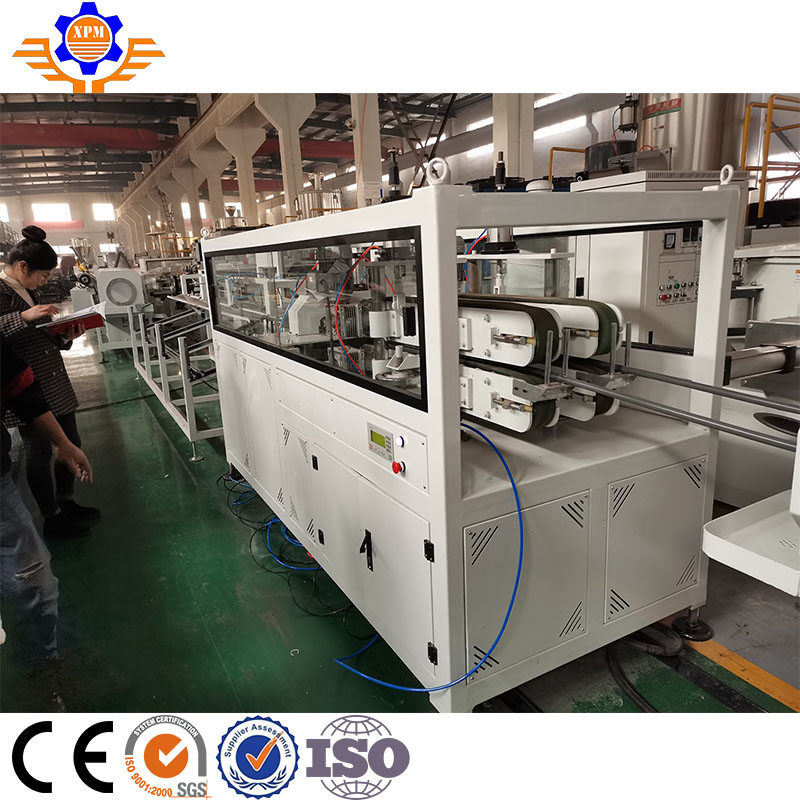

7. Haul-off machines: 2 laws, 3 claws, 4 claws, 6 claws, and 8 claws are provided to manufacture various pipes, haul-off speed governed by the FUJI or ABB inverter.


8. Cutting unit: saw cutting and planet saw cutting, with the dust collection system.


9. Staking unit: automatic overturning system, can freely fix the length of the pipe.


10. Controlling system: manual controlling cabinet or SIEMENS PLC touch screen control.


Pvc Plastic Pipe Manufacturing Machine , Capacity 300kg / Pvc Pipe Extrusion Machine 0



Technical Parameter:


Extruder SJZ-65/132 SJZ-80/156 SJZ-92/188
Pipe size Φ16-Φ63MM Φ50-Φ110MM Φ90-Φ160MM
Mould Double outlet Double outlet Double outlet
Downstream GF63-2 GF110-2 GF160-2
Total Power 109.5KW 145KW 250KW
Total Length 22.2M 27M 28.8M

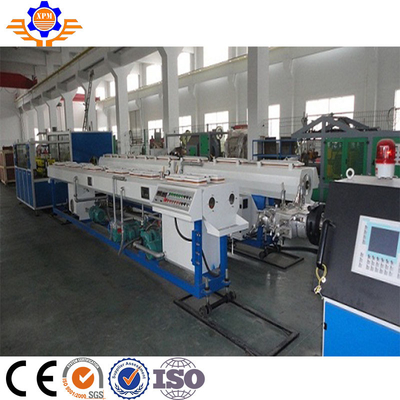

Pvc Plastic Pipe Manufacturing Machine , Capacity 300kg / Pvc Pipe Extrusion Machine 1


Overall Service:

No. Item Details
1 Formula support

We provide basic formula to our customers for each project.

And our engineers will help customers to do formula adjustment according to requirement.

2 Installation support Our engineer will help customers to install the machines in Customer’s factory.
3 Operation support We provide machine operation and maintenance training for our customers.
4 Fast response We provide machine operation and maintenance training for our customers.



Features Specifications:


1. Model SJZ series conical twin-screw extruder is a kind of special equipment for extruding PVC compound. With different kinds of molds and auxiliary machines, it can produce all sorts of PVC plastic pipe, profile, plate material, sheet material, bar material, and granulation.

2. The conical twin screws have applied the oil cooling system. Barrel is cooled by special wind cooling system.

3. The conical twin-screw extruder system has applied special computer control. According to customers requirements, most reasonable structure of conical twin-screw can be made so as to achieve the best plasticity performance and material quality.

4. The conical twin-screw is made by high precision special digital screw miller; extruding property can be highly harmonized. It has firstly introduced the advanced technique of producing screw with variable pitch and depth, so that the material can be more softly sheared and cut.

5. The distribution box is specially designed, pull force bearing is fully imported, and the drive life span can be prolonged. It can bear larger extruding pressure.

6. The electrical system has mainly applied imported parts, it has multiple alarm system, and there are few problems that can be easily eliminated. The cooling system has applied special design, heat emission area is enlarged, the cooling is rapid, and temperature control tolerance can be ± 1degree.


Plastic Pipe Manufacturing Machine 37Kw Pvc Pipe Extrusion Machine Line 2
