8-32mm corrugated PVC Pipe Extrusion Line | Corrugated PVC pipe making machine
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Contactor Brand||Siemens||Raw Material||PVC|
|Voltage||380V Or Customized||Application||Plastic Pipe|
4m/min PVC Pipe Extrusion Line,
10m/min PVC Pipe Extrusion Line,
corrugated pipe forming machine CCE
PP PE PVC Corrugated Pipe Corrugated Pipe Production Line Making Machine SIngle Wall Pipe Extrusion Line
SaiJia Single-Wall Corrugated Pipe Extrusion Line
Used for producing wires and cable passing pipes , washing machine drain pipes , dust collector pipes and ventiducts .
|Main Technical Parameters|
|Model||XPM 25||XPM 32||XPM 63|
|Pipe Diameter Range(mm)||8-25||16-32||20-63|
Would like to know more details , feel free to send us inquiry !
Continously Innovating And Manufacuturing Of Plastic Machinery.ZHANGJIAGANG SAIJIA MACHINERY TECHNOLOGY CO.,LTD.Our main products are: plastic pipe extrusion line and plastic machine.The main products are popular exported to international market,including Russia,Australia, Southeast Asia,Middle East,East Europe.Africa and other countries.
PE PP PVC Spiral Corrugated Pipe Making Machine
Main uses of plastic corrugated pipe: single-wall corrugated pipe are mainly used for machine tool machinery and cabinet control cabinet wiring connection, such as instrumentation, control cabinet, equipment manufacturing, engineering installation, train, automobile, subway, machine tool machinery, automation control and other industries. Double-wall corrugated pipe is mainly used for drainage pipe of municipal construction and mine seepage pipe.
The corrugated pipe machine produced by our company mainly adopt German push-block structure. The production speed of plastic single-wall bellows can reach 15-30 m/min and 110 double-wall bellows can reach 4-6 m/min.
Single Screw Extruder
High production capacity of extrusion on the high quality basis. Lower temperature plasticizing design, ensure high quality PIPE extrusion.
Material of screw and barrel: 38CrMoAlA, nitrogen quenched (0.4-0.7mm ), Rigidity of screw: >740 , Rigidity of barel >940, the surface of screw is chromeplated Feeding bush with water cooling system
Material :40Cr , the surface of die is chromeplated, anti-corrosive

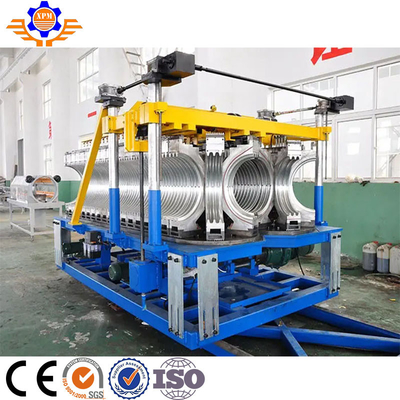

High Speed Forming Machine
Gear driven system with high precision modules and tracks. The track is water cooling system, it could meets 10-30m/min working speed.It is added water cooling and fan cooling two system.
Materials of moulds block:40CrThe moulds are made by CNC system, it is high precison and long service life.
It could be designed into one hole or two hole according customer request.
We could print customers logo into moulds according request.
No of wheel: two wheel or one wheel according customer requestUseing delta inverter system, it is automatic adjustment of winding speed.
Temperature controller: OMRON
Contactor and replay: SIEMENS
Inverter: ABB or Delta Character
High precise temperature control. Configurable alarm strategy.
All of the production data can be displayed electrical panel.
Very easy operation.
ZHANGJIAGANG SAIJIA MACHINERY TECHNOLOGY CO.,LTD.specializing in the production of HDPE PP PVC PA single wall corrugated pipe machine, double-wall corrugated pipe production line,Equipment operation is stable, automatic production, saving labor, efficient extrusion.
