440Kw HDPE Pp Single Wall Corrugated Pipe Production Line Making Machine Single Wall
| Place of Origin | ZHANGJIAGANG,CHINA |
|---|---|
| Brand Name | XPM |
| Certification | CE,ISO |
| Model Number | 12-63MM |
| Minimum Order Quantity | 1 SET |
| Price | 20,000-30,000 USD/SET |
| Packaging Details | WOODEN CASE PACKING AND PLASTIC FILM |
| Delivery Time | 45 WORKING DAYS |
| Payment Terms | L/C, T/T |
| Supply Ability | 20 SETS PER MONTH |
Product Details
| Contactor Brand | Siemens | Raw Material | PE,PP,HDPE |
|---|---|---|---|
| Color | Customized | Screw | Conical Twin Screw |
| Warranty | 1 Year | Inverter | ABB |
| Voltage | 220V,380V Or Customized | Application | Plastic Pipe |
| Output | 40-60Kg/H | Motor Power | 25-440Kw |
| High Light | 440Kw pp pipe extrusion line,HDPE pp pipe extrusion line,corrugated pipe making machine Single Wall |
||
Product Description

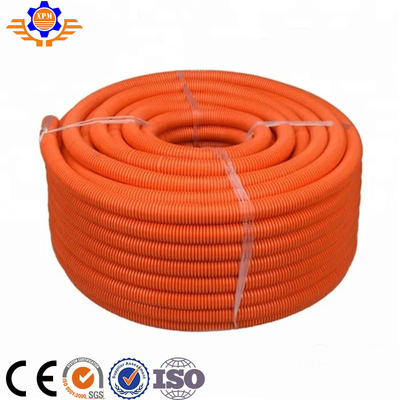

PE PP Single - Wall Corrugated Pipe Extrusion Line, Corrugated Pipe Extruder
This line is designed to produce single wall conrrugated pipe which material is PP,PEand PA etc,special designed screw,special structured screw and special structure mould an protect screw and barrel from easy-abrasion and give an easy forming process ,This kind of pipe,protect pipe of car and train ,supply and drainage pipe for washer, irrigation of farm and so on.
Main Technical Parameters:
| MAIN MACHINE MODEL | SJ-35 | SJ-45 | SJ-65 |
| PIPE DIAMETER RANGE(MM) | 6-12 | 9-25 | 25-50 |
| MAIN MACHINE I/D | 30:1 | 30:1 | 30:1 |
| OUTPUT(KG/H) | 15 | 30 | 60 |
| MAIN MOTOR CAPACITY(KW) | 5.5 | 11 | 18.5 |
| FORMING MACHINE CAPACITY(KW) | 1.5 | 2.2 | 3.0 |
| PAIR OF MODULES | 42 | 42 | 50 |
| COOLING MODE | WATER&AIR COOLING | ||
| PRODUCTION SPEED (M/MIN) | 5-12 | 5-12 | 5-12 |
| INSTALLED POWER(KW) | 12 | 20 | 30 |
1. The extruder adopts frequency conversion control, simple adjustment, reliable operation, stable operation and low energy consumption.Extruder, machine head and traction adopt one-body vertical cabinet, which is convenient for the centralized control and operation of the whole set of equipment.
2. The extruder screw and cylinder are made of 38CrMOAlA high quality nitrided steel, which has been forged, tempered and nitrogenated. The unique design has made the material plasticized with good effect and stable production.
3. Central feed head is adopted for pipe forming, and spray cooling combined with water immersion type is adopted for vacuum sizingHigh precision, even thickness
4. Special v-type crawler tractor is adopted to ensure that the pipe is not easy to produce traction deformation.
5, coiling machine adopts three-phase asynchronous torque motor controller, effectively overcome the center tension defects, and is controlled by a separate electric cabinet, to better facilitate the independent operation, control of production process.
6. When producing small pipe diameter pipe, vertical hard pipe coil pipe is adopted;In the production of large diameter pipe, the use of pipe stack frame, with appropriate pipe cutting device, can produce different specifications of hard pipe.
