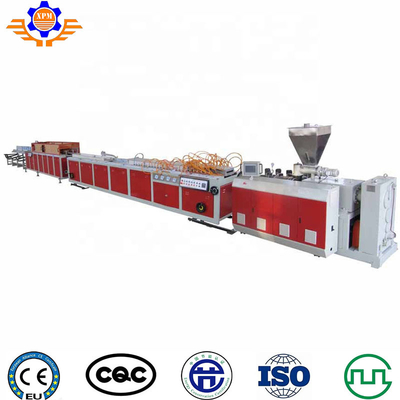

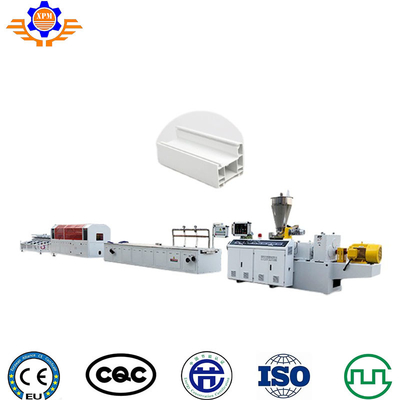

20M Plastic PVC Profile Extrusion Line For Wall Ceiling Corner Tile Making

  • 20M Plastic PVC Profile Extrusion Line For Wall Ceiling Corner Tile Making
  • 20M Plastic PVC Profile Extrusion Line For Wall Ceiling Corner Tile Making
  • 20M Plastic PVC Profile Extrusion Line For Wall Ceiling Corner Tile Making
  • 20M Plastic PVC Profile Extrusion Line For Wall Ceiling Corner Tile Making
  • 20M Plastic PVC Profile Extrusion Line For Wall Ceiling Corner Tile Making
  • 20M Plastic PVC Profile Extrusion Line For Wall Ceiling Corner Tile Making
Place of Origin ZHANGJIAGANG,CHINA
Brand Name XPM
Certification CE,ISO
Model Number XDXC180/240/300/400/500
Minimum Order Quantity 1 SET
Price 40,000-50,000 USD/SET
Packaging Details WOODEN CASE PACKING AND PLASTIC FILM
Delivery Time 45 WORKING DAYS
Payment Terms T/T
Supply Ability 20 SETS PER MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Contactor Brand Siemens Raw Material PVC
Color Customized Screw Conical Twin Screw
Warranty 1 Year Inverter ABB
Voltage 220V,380V Or Customized Application Plastic Pipe
Output 150-320Kg/H Motor Power 37-110Kw
High Light

20M PVC Profile Extrusion Line

,

PVC Profile Extrusion Line ABB inverter

,

plastic tile making machine 110Kw
Leave a Message
Product Description

High Effiency Plastic PVC Profile Extrusion Line For Wall Ceiling Corner Tile Making

Description of PVC Ceiling Corner Tile Making Machine:
PVC Corners Production Line consists of twin-screw extruder, vacuum stereotypes table, haul-off machine, punching machine, cutter and stacker. It can be one out of four or one out of six, high output and achieve online punching, which saving time and effort and easy to operate.

20M Plastic PVC Profile Extrusion Line For Wall Ceiling Corner Tile Making 0

Process Flow of PVC Ceiling Corner Tile Making Machine:
Raw material +wood power+ additive → mixing → granulating → conical twin-screw extruder → profile extrusion mould → cool molding die → vacuum calibration support → belt haul-off → cutter → rack → finished product inspecting & packing



Raw materials for PVC Corner :
PVC + calcium + other additives.
PVC high chemical stability,panels can be used for a long time.



Feeder • To feed material into extruder;
Extruder •World famous brand electrical component: Siemens,Schneider, ABB etc;
• High torque gearbox with adopts NSK/SKF bearing;
• Siemens/WEG original motor achieved global after service;
• Bimetallic screw and barrel;
• Intelligent PLC controlling system with human-friendly interface.
Die head • 3Cr13/3Cr17 material
• Complete set include extrusion die head, calibrator and cooling tank
• Adopt to single, co-extrusion, foam imitation marble profile
calibration table • Include full set of vacuum and water pump
• Width: 240mm
• Length: 6000mm
• Independent operation panel for easy operation
Haul off • Upper/lower caterpillar driven separately and speed control by inverter
• Fast change type pads for easy operation
• Install plate is adopts aluminum material
Cutter • Lifting saw cutter with adopts double station dust collection system
•Synchronous drivingby air cylinder or servo motor control
Stacker • Stainless steel304 as touching material
• Discharge driving by air cylinder
Hot stamping machine • Decorative pattern and film protection of product surface





Technical information:

Parts No. Name Brand
1 Screw and barrel 1 Design German design
2 Main materials 38CrMoALA
3 Screw heating Silicon oil heating
4 Barrel heater Cast aluminum heater
5 Barrel has vacuum exhausting system

2 Driving parts 1 Main motor Siemens Brand
  2 Gear box Top brand in China

3 Electric parts 1 Inverter ABB brand
2 Contactor Schneider brand
3 Relay Schneider brand
4 Breaker Delixi brand
5 Temperature meter RKC brand
6 Hauling motor Densen brand
7 Hauling gear box Hard surface gear box
8 Vacuum pump Yvhuang brand
9 Water pump Yvhuang brand
10 Cutting motor Siemens brand
11 PLC Schneider brand

4 Mechanical parts We use CNC machines to ensure the precision of our mechanical parts

5 Protection system We have a whole set of protection system for our machines, such as:
1 Current overload protection
2 Torque overload protection
3 Oil path blocking alarm
4 Vacuum overload alarm, and so on.
For more technical information please contact us by email.
