Composite PVC Wall Panel Extrusion Line Fluted 8mm Wpc Wall Panel Machine

Place of Origin ZHANGJIAGANG,CHINA
Brand Name XPM
Certification CE,ISO
Model Number SJZ 55/65
Minimum Order Quantity 1 SET
Price 40,000-50,000 USD/SET
Packaging Details WOODEN CASE PACKING AND PLASTIC FILM
Delivery Time 45 WORKING DAYS
Payment Terms T/T
Supply Ability 20 SETS PER MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Contactor Brand Siemens Raw Material PVC,WPC
Color Customized Screw Conical Twin Screw
Warranty 1 Year Inverter ABB
Voltage 220V,380V Or Customized Application Decorative Materials
Output 150-320Kg/H Motor Power 37Kw
High Light

WPC PVC Wall Panel Extrusion Line

,

Composite PVC Wall Panel Extrusion Line

,

8mm wpc wall panel machine

Leave a Message
Product Description

Wood Plastic Composite PVC WPC Fluted Wall Panel Board Extrusion Machine Line

Product Description
Machine name: Plastic PVC Wall Panel Making machine, Plastic PVC Ceiling Board Making Machine
Finished product : Plastic Wall Panel , PVC composite ceiling , Plastic profile
Composite PVC Wall Panel Extrusion Line Fluted 8mm Wpc Wall Panel Machine 0

Product advantages:

High Intensity: service life of more than 30 years.

Waterproof & Rot Resistance: suitable for different climates, every occasion.

Quick & Easy Installation: saving labor and financial resources.

Easy to Clean: widely used in kitchens, living rooms, bathrooms,etc.(for ceiling and wall)

Variety of Colors and Patterns: different color and pattern can be made as required.

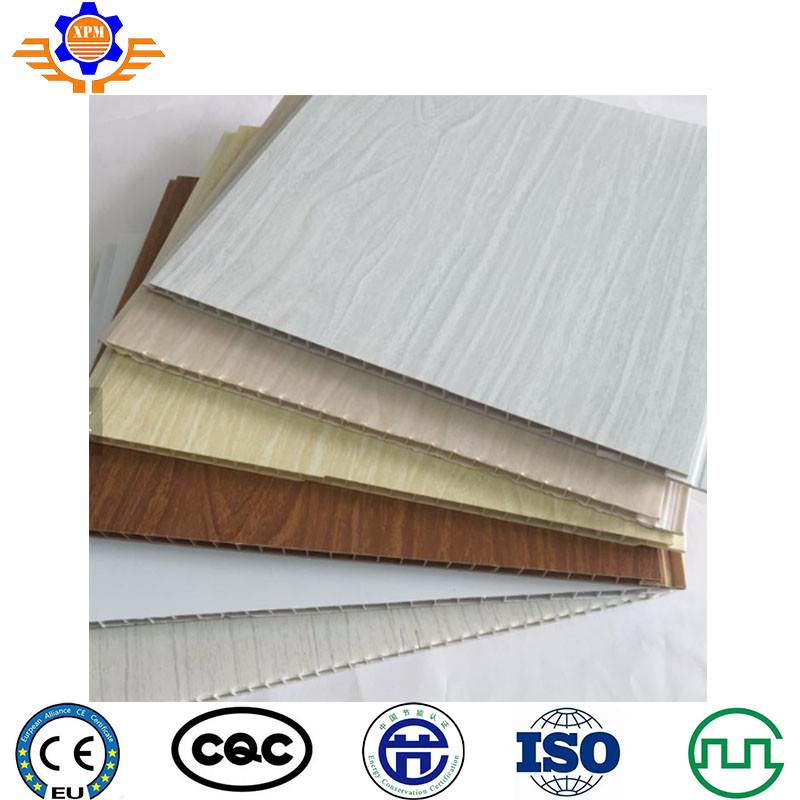

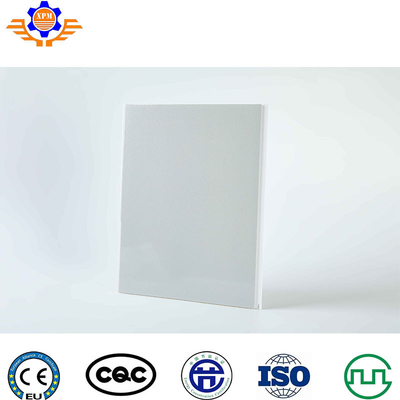

Product NamePVC panel , PVC ceiling , PVC wall panel , PVC board
Surface Treatment Normal Printing , Transfer Printing , Laminated , Common glossy , High glossy
Thickness5mm, 6mm,7mm,7.5mm,8mm,9mm,10mm,11mm,12mm
Width180mm, 200mm, 250mm, 300mm, 400mm, 550mm, 600mm
Length2m, 2.7m, 3m, 4m, 5.8m or customized
Weight 1.8, 1.9, 2.0, 2.1, 2.2, 2.3, 2.4, 2.5, 2.6, 2.7, 2.8, 2.9, 3.0, 3.2, 3.3, 3.4, 3.5, 3.6 kg/sqm

Composite PVC Wall Panel Extrusion Line Fluted 8mm Wpc Wall Panel Machine 1

Composite PVC Wall Panel Extrusion Line Fluted 8mm Wpc Wall Panel Machine 2
Composite PVC Wall Panel Extrusion Line Fluted 8mm Wpc Wall Panel Machine 3

Composite PVC Wall Panel Extrusion Line Fluted 8mm Wpc Wall Panel Machine 4
Composite PVC Wall Panel Extrusion Line Fluted 8mm Wpc Wall Panel Machine 5


Main technical specifications of machines
Maximum panel width300mm400mm600mmProfiles
Extruder modelSJZ 55SJZ 65SJZ 65/SJZ80SJZ 51
Extruder motor22kw37kw37kw/55kw15kw
Production speed2m/min4m/min3m/min2m/min
Production speed120kg/h220kg/h220kg/h / 400kg/h100kg/h



Machine List
No.NameQty.Remark
1Spring loader for extruder1
2SJZ series conical twin screw extruder1
3Extrusion mould unit1Change mould for different shape
4Vacuum calibration Table1
5Haul off unit1
6Lamination & hot stamping machine(inline)1Change film for different pattern
7Blade Cutter1
8Stacker1



Auxiliary Machine
9SRL-Z Series Mixer unit1Capacity : 450-550kg/h
10Screw loader for Mixer1
11Crusher1Power: 11kw,22kw,30kw
12Pulverizer1Power: 45kw,55kw,75kw


Detailed Images

Composite PVC Wall Panel Extrusion Line Fluted 8mm Wpc Wall Panel Machine 6

Extrusion System

Name: SJZ65/132 Conical twin screw extruder
Technical parameters:
a.Main motor :37kw Siemens Brand.
b.Inverter:ABB
c.Screw barrel: 38CrMoAl, hardness Hv950 or more , high-efficiency and long service life.
d. Vacuum pump : Double station.
Composite PVC Wall Panel Extrusion Line Fluted 8mm Wpc Wall Panel Machine 7


Mould Part

Name: Extrusion mould
Technical parameters:
a.special design for PVC profile
b.Mirror polishing Cr plating,
c.Three dimensional flow simulation software design.
Composite PVC Wall Panel Extrusion Line Fluted 8mm Wpc Wall Panel Machine 8


Calibration Table

Name: Calibration table with forming mould
Technical parameters:
a.Up and down, left and right manually adjusted
b.With Infrared device, guarantee speed synchronously with Haul-off speed.
Composite PVC Wall Panel Extrusion Line Fluted 8mm Wpc Wall Panel Machine 9


Lamination & Hot Stamping Machine

Name: Lamination & hot stamping machine (in line)
Technical parameters:
a.It has two function: hot stamping and laminating
b.Working thickness and width can be adjusted
c.Equipped with foil tension force control system.
Composite PVC Wall Panel Extrusion Line Fluted 8mm Wpc Wall Panel Machine 10


Blade Cutter

Name:Blade Cutter
Technical Parameters:
a.Cylinder control moving, non-dust cutting
b.With Photoelectricity device, guarantee cutting accurate
c.when lamination film or hot stamping film, each film pattern is accurate
d.PLC HMI operation


Company Profile

Composite PVC Wall Panel Extrusion Line Fluted 8mm Wpc Wall Panel Machine 11
SAIJIA MACHINERY

Continously Innovating And Manufacuturing Of Plastic Machinery.ZHANGJIAGANG SAIJIA MACHINERY TECHNOLOGY CO.,LTD.Our main products are: plastic pipe extrusion line and plastic machine.The main products are popular exported to international market,including Russia,Australia, Southeast Asia,Middle East,East Europe.Africa and other countries.

ZHANGJIAGANG SAIJIA MACHINERY TECHNOLOGY CO.,LTD.
Zhangjiagang Saijia was established in 2000. The production experience is mature and rich. Among them, it has been exporting for more than 20 years, and more than 100 countries have exported. The annual export turnover is about 15 million US dollars. Our company's production base covers more than 50,000 square meters. , Modern office and production room more than 35,000 square meters, with experienced high-quality staff team, first-class equipment, perfect and effective quality assurance system, advanced and complete testing equipment.

Workshop
We know the quality is the life of our company. Our company insists to manufacture all machine units by ourselves in order to control quality strictly by our quality inspectors. To implement this concept, we have built our own tooling and CNC workshop. Even if some parts from our certified supplier, our quality inspector will check these parts before entering into our warehouse.
Composite PVC Wall Panel Extrusion Line Fluted 8mm Wpc Wall Panel Machine 12
Warmly welcome to visit our workshop, and sincerely hope we can have long term cooperation in near future!

Composite PVC Wall Panel Extrusion Line Fluted 8mm Wpc Wall Panel Machine 13
Certificates
International certification, verification certificates of equipment include:CE electrical certificate, CE mechanical certificate, ISO quality management certificate, Nigerian quality certificate etc.

Composite PVC Wall Panel Extrusion Line Fluted 8mm Wpc Wall Panel Machine 14
FAQ
1) Are we manufacture or trade company?
We are manufacture,have 20 years' experiences in this field.
2) What kind machines we produce?
Our factory produce plastic pipes machines, plastic machine.
3) What kind payment we accept?
Payment term like T/T
4) How long we need to produce the machines?
According to different machine model and configuation, we need different time, like 40 days to 2 months.
5) Will the machine be delivered on time ?
Sure,we will deliver your machine up recieving the balance payment.
6) How about the machine quality?
Our machine quality is reliable.We select every parts on the machine strictly and production and installation is done by
professional workers.We test each production step for the best machine.
7) How about the price?
You know ,the goods counts the the price.We select the best machine raw material such as siemens electrics,schneider and ABB etc.We will provide you the best machine with best price.
8) How long is your machine’s guarantee time?
One year
9) What can you provide for after sale service?
We can send engineers to your factory for installation and training.also 24 hours on-line service for you.
