16 - 50MM Multi 2 Strands PVC Pipe Extrusion Line 37KW Pvc Tube Making Machine

  • 16 - 50MM Multi 2 Strands PVC Pipe Extrusion Line 37KW Pvc Tube Making Machine
  • 16 - 50MM Multi 2 Strands PVC Pipe Extrusion Line 37KW Pvc Tube Making Machine
  • 16 - 50MM Multi 2 Strands PVC Pipe Extrusion Line 37KW Pvc Tube Making Machine
  • 16 - 50MM Multi 2 Strands PVC Pipe Extrusion Line 37KW Pvc Tube Making Machine
Place of Origin ZHANGJIAGANG,CHINA
Brand Name XPM
Certification CE,ISO
Model Number 16-50MM
Minimum Order Quantity 1 SET
Price 20,000-25,000 USD/SET
Packaging Details WOODEN CASE PACKING AND PLASTIC FILM
Delivery Time 45 WORKING DAYS
Payment Terms L/C, T/T
Supply Ability 20 SETS PER MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Contactor Brand Siemens Raw Material PVC
Color Customized Screw Conical Twin Screw
Warranty 1 Year Inverter ABB
Voltage 220V,380V Or Customized Application Plastic Pipe
Output 250Kg/H Motor Power 37Kw
High Light

Multi Strands PVC Pipe Extrusion Line

,

50MM PVC Pipe Extrusion Line

,

37KW Pvc Tube Making Machine
Leave a Message
Product Description

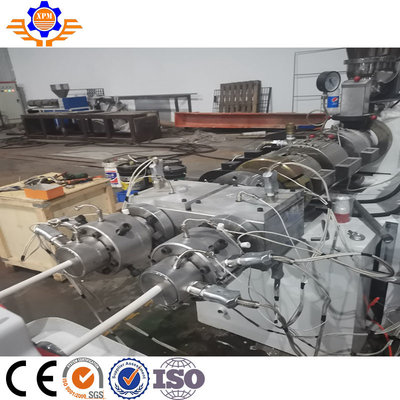

16-50MM Multi 2 Strands PVC Pipe Extrusion Line 37KW Pvc Tube Making Machine



16 - 50MM Multi 2 Strands PVC Pipe Extrusion Line 37KW Pvc Tube Making Machine 0


Main Technical Features
1. It is mainly used to produce all kinds of UPVC pipes for agricultural water supply and drainage, building water supply and drainage and cable laying, etc.
2. Saw cutter and planetary cutter for choice
3. Changing some parts can also produce M-PVC pipe, C-PVC pipe, inner spiral wall pipe, inner hollow wall pipe, formed core pipe.
4. Conical twin screw extruder and parallel twin screw extruder for choice
5. Double-strand and four-strand for choice for small pipes

Application of pvc pipe:
pvc pipe mainly use in agricultural and construction water supply-drainage.cpvc pipe due to its special character, widely use in base oil transportation,temperature and corrosion resistance pipe of chemical,hot water supply-drainage pipe and protection pipe of high voltage electricity and electrical cables.



16 - 50MM Multi 2 Strands PVC Pipe Extrusion Line 37KW Pvc Tube Making Machine 1


Specification

Model:SJ45 Ordinary pipe extruding line
Item Unit Parts Number Description
1 SJ45 Extruder screw & barrel 1 set Φ45 mm, L/D=25:1, 38CrMoAIA,
nitriding, screw: Cr plated
gear box 1 set gear hardening, polished, horizontal
machine frame 1 set Steel structure
main motor 1 set 11 kw frequency varying
control panel 1 set 5 zone temperature control, 4 air cooling
2 Vacuum Sizing Table   1 set length: 2.5 meters
surface material: stainless steel
3-dimension manual adjustable
vacuum pump: 2.2 kw
3 Drawing Unit   1 set 1.5 kw frequency varying
4 Cutting Unit   1 set 1.5 kw frequency varying
effective length: 3 m
automatic discharge rack



16 - 50MM Multi 2 Strands PVC Pipe Extrusion Line 37KW Pvc Tube Making Machine 2

16 - 50MM Multi 2 Strands PVC Pipe Extrusion Line 37KW Pvc Tube Making Machine 3



SPECIFICATIONS:

MODEL PIPE DIAMETER (MM) EXTRUDER MODEL MOTOR POWER (KW)
XPM-32F 16-32 (FOUR PIPE) SJSZ65/132 37 AC
XPM-32E 16-32 (DOUBLE PIPE) SJSZ51/105 22 AC
XPM-32W 16-32 (DOUBLE PIPE) SJSZ65/132 37 AC
XPM-40E 16-40 (DOUBLE PIPE) SJSZ51/105 22 AC
XPM-40W 16-40 (DOUBLE PIPE) SJSZ65/132 37 AC
XPM-50E 16-50 (DOUBLE PIPE) SJSZ51/105 22 AC
XPM-50W 16-50 (DOUBLE PIPE) SJSZ65/132 37 AC
XPM-63W 16-63 (DOUBLE PIPE) SJSZ65/132 37 AC




16 - 50MM Multi 2 Strands PVC Pipe Extrusion Line 37KW Pvc Tube Making Machine 4
