Four Tube PVC Pipe Extrusion Machine , Electrical Conduit Pipe Production Line

Place of Origin ZHANGJIAGANG,CHINA
Brand Name XPM
Certification CE,ISO
Model Number 110-250MM
Minimum Order Quantity 1 SET
Price 40,000-50,000 USD/SET
Packaging Details WOODEN CASE PACKING AND PLASTIC FILM
Delivery Time 45 WORKING DAYS
Payment Terms L/C, T/T
Supply Ability 20 SETS PER MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Contactor Brand Siemens Raw Material PVC
Color Customized Screw Conical Twin Screw
Warranty 1 Year Inverter ABB
Voltage 220V,380V Or Customized Application Plastic Pipe
Output 450Kg/H Motor Power 55Kw
Leave a Message
Product Description

PVC ELECTRICAL CONDUIT DIAMETER 16-32MM FOUR TUBES MAKING MACHINE



COMPONENTS AND FEATURES:



The manufacture of high capacity pipes are increasingly feeling the pressure of rising energy and raw material costs. As the result of this, SaiJia MACHINERY has continuously being optimizing its pipe extrusion solutions during recent years. The result: a first rate energy balance with high output and pipe extrusion with maximum effectiveness. With extrusion line from SaiJia MACHINERY-everything from one source –you can be on the safe side. We accompany you from the initial idea to the finished product-reliable, competent and fair.



SaiJia MACHINERY is a company that makes manufacture of PVC pipe machinery. Company principles are manufacturing without compromising high quality and standards and being customers oriented.

With young. dynamic powerful engineers, we produce standard, customer design and fully automated plastic machine. Our R & D department is improving the machine quality, making low cast and increasing the durability of the machine.

PVC DOUBLE/FOUR strands pipe extrusion line is applied for manufacturing PVC pipe with the pipe diameter of 16-32mm, 16-63mm and different pressure classes that is applied in fields of building, architecture, telecom communication, etc..



The complete extrusion consists of following items:

  • Conical Twin Screw Extruder:

It is used for melting and stirring plastic material. We adapts special screw and barrel type that provide perfect mixing and homogenous.

We use special gear box for the Extruder which has axial bearings. Transfer the motor to the screw. For minimizing electricity consumption, we use the famous brand of driving motor of “SIEMENS” on our Extruder. Automation system designed with PLC and touch panel controller can be selected.

  • FOUR Strands Die-Head:

The die head and die system is manufactured with melt flow channels designed to ensure excellent performance in whole range of pipe diameter. According to the material characteristic of pipe, the designing of the die head and die system changes and even at high extrusion pressure. It gives perfect outcome.

  • FOUR Strand Vacuum Tank:

The Vacuum Tanks are manufactured with stainless steel.

Our nozzles designing for maximum cooling performance. Cooled water sprinkles to hot plastic pipe outside face from the nozzles.

With high power water pump, cooled water can reach to pipe completely.

Our vacuum tank’s pressure can be adjusted, so vacuum pressure can be fixed according to pipe requirement. We sealing gasket for every lid on the vacuum tank. This stops vacuum leakage and minimizing energy consumption.

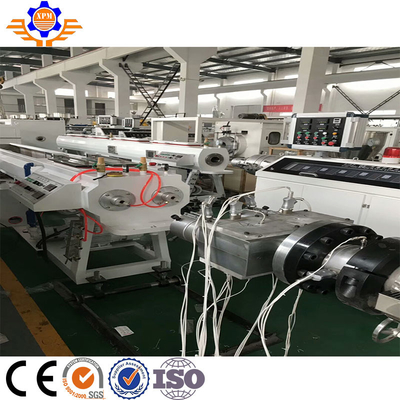

Four Tube PVC Pipe Extrusion Machine , Electrical Conduit Pipe Production Line 0

  • FOUR Strands Belt Type Haul-offs:

The belt haul-off is used for high speed extrusion of small pipe. it is free from vibration and ensure the excellent control even at high speed.

With the material we have used in our haul-offs, we have very good adhesion to the pipe and ensure slip prevented.

The needed speed for setting of belts can be changed with electrical inverter. Different line speeds are adjusted by using control panel easily.

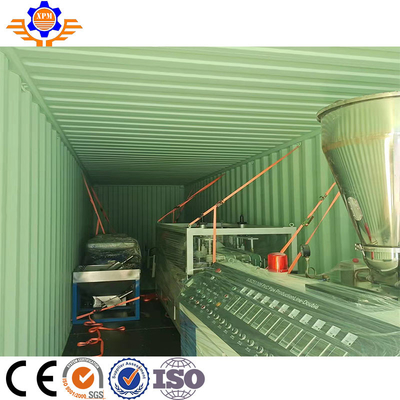

Four Tube PVC Pipe Extrusion Machine , Electrical Conduit Pipe Production Line 0

  • FOUR Strands Saw Cutter:

Automatic cutting unit, that is ideal solution for small and medium size pipes. It works synchronic with belt haul-off.

Pipe length to be cut is easily adjusted via the touch screen.

Pipe length measure by encode so desired length can cut precisely.

  • FOUR Strands Tipping Table:

It operates on pneumatic cylinder.



SPECIFICATIONS:

MODEL PIPE DIAMETER (MM) EXTRUDER MODEL MOTOR POWER (KW)
XPM-32 16-32 (FOUR PIPE) SJSZ65/132 37 AC
XPM-32 16-32 (FOUR PIPE) SJSZ80/156 55 AC
