Automatic 50MM PVC Plastic Pipe Extrusion Line High Speed Conical Twin Screw Extruder

Brand Name XPM
Certification CE,ISO
Model Number 20-50MM
Minimum Order Quantity 1 SET
Price 20,000-25,000 USD/SET
Delivery Time 45 WORKING DAYS
Payment Terms L/C, T/T
Supply Ability 20 SETS PER MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Contactor Brand Siemens Raw Material PVC
Color Customized Screw Conical Twin Screw
Warranty 1 Year Inverter ABB
Voltage 220V,380V Or Customized Application Plastic Pipe
Output 250Kg/H Motor Power 37Kw
High Light

50MM plastic pipe extrusion line CE


PVC plastic pipe extrusion line ISO


37Kw conical twin screw extruder

Leave a Message
Product Description

Automatic Plastic Pipe Extrusion Line High Speed Conical Twin Screw Extruder


A conical twin-screw extruder is a professional equipment to extrude PVC/ composite mixture of PVC.

Equipped with different die heads, downstream equipment, it can be applied for manufacturing of pipe, profile, composite profile, panel, sheet and pelletizing, etc... It consists of the following items:

Driving motor: equipped with a famous brand motor as a driving source

Gearbox: equipped with a famous brand gearbox to ensure the maximum output of the power

Screw & barrel: it is made of bi-metallic. The screw core is equipped with the device of temperature regulation of oil as medium and the barrel is equipped with an air blower as a cooling device. The designing of screw and barrel will adapt the reasonable and optimal structure based on the characteristics of the formula of raw material ensure to get the plasticizing and melt stream for plastics.

Control system: equipped with famous brand electrical components ensure to get accurate control.

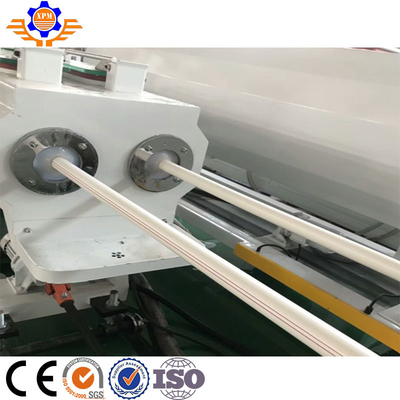

Automatic 50MM PVC Plastic Pipe Extrusion Line High Speed Conical Twin Screw Extruder 0



1. Our high speed extruder has following characteristics, high speed, high efficiency, and high stability. The design is special, high efficiency five-part form structure screw, can maximum assure the material plasticization, disperse, and can assure high speed and stable production of pipe.


2. Our production line be equipped with innovotive screw stroge mould, this mould effective overcomes instantaneous flucuation of extrusion pressure. Achieve stable extrusion of materials at high speed and constant pressure.


3. Our production line mainly adopt programmable control system controls the entire line, effective improve the entire line sychronism and operablity. Can save time, manpower , and can help admistrator to know the machine well.


4. Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts. High pressure double crank to control the die opening and closing. Running in a high automatization and intellectualization,no pollution. Apply a linker to connect with the air conveyor ,which can directly inline with filling machine.

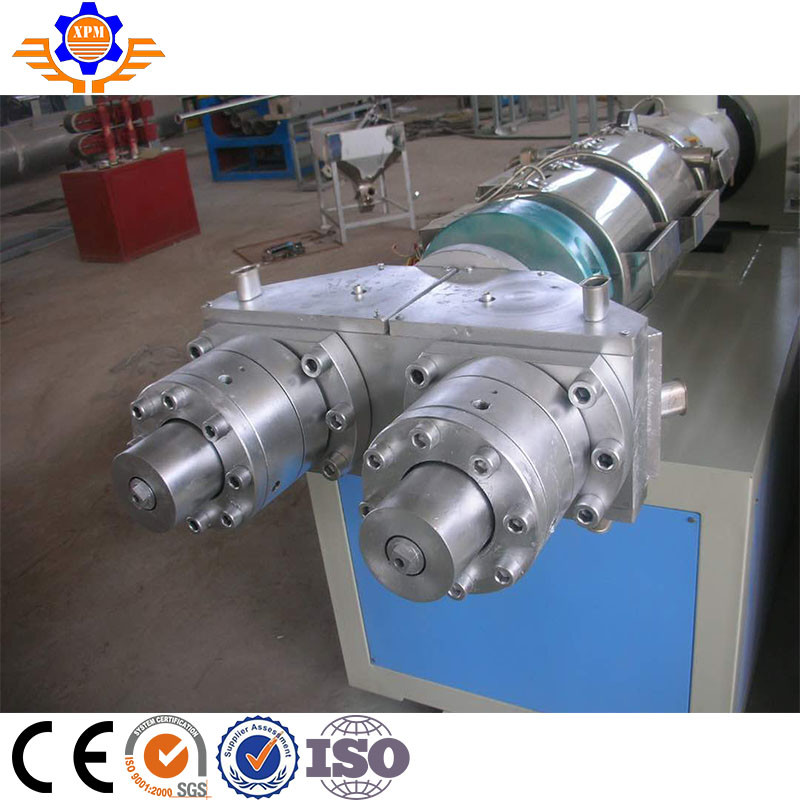

Automatic Plastic Pipe Extrusion Line High Speed Conical Twin Screw Extruder 0

Production Line Strucure:

Model Screw Diameter L/D Ratio Production speed Machine total power Machine size
SJ65/33 65mm 33:1 15m/min 63kw 27x1.5x3
SJ60/33 60mm 36:1 35m/min 102kw 34x1.5x3
SJ75/33 75mm 36:1 55m/min 163kw 58x2.5x3


Our competitive advantages:

1) We give you suitable suggestions according to your actual need.

2) Technical support: long available life


3) Under the right operation way, the screw and barrel is for 10000 working hours.

4) Our expert will answer any inquiry within 48 hours and it will be solved as soon as possible.

5) The customer can send the engineer to our company with training

6) Our engineer can be to the Buyer's company for installation and testing the lines.

7) The seller provides you with complete technical support documents and the relative drawings of the electric components are written in Chinese and English.

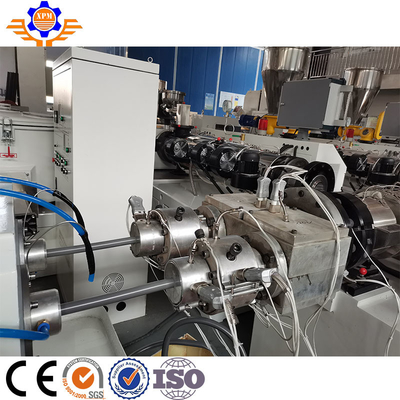

Automatic 50MM PVC Plastic Pipe Extrusion Line High Speed Conical Twin Screw Extruder 2
