Plastic Conduit Pipe Making Machine Twin Screw Pvc Pipe Manufacturing Machinery

Place of Origin ZHANGJIAGANG,CHINA
Brand Name XPM
Certification CE,ISO
Model Number 20-50MM
Minimum Order Quantity 1 SET
Price 20,000-25,000 USD/SET
Packaging Details WOODEN CASE PACKING AND PLASTIC FILM
Delivery Time 45 WORKING DAYS
Payment Terms L/C, T/T
Supply Ability 20 SETS PER MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Contactor Brand Siemens Raw Material PVC
Color Customized Screw Conical Twin Screw
Warranty 1 Year Inverter ABB
Voltage 220V,380V Or Customized Application Plastic Pipe
Output 250Kg/H Motor Power 37Kw
High Light

ABB inverter Conduit Pipe Making Machine

,

135kg Conduit Pipe Making Machine

,

Twin Screw pvc pipe manufacturing machinery

Leave a Message
Product Description

0.5-2 Inch PVC Conduit Pipe Making Machine / Plastic Pipe Production Line



Description of the PVC double pipe making machine:

1. 0.5-2inch PVC Conduit Pipe Making Machine is mainly used in the manufacture of the UPVC and PVC pipes with various pipe diameters and wall thickness such as the agricultural and constructional plumbing, water supply and drain etc.
2. This plastic pipe machine is composed of conical twin-screw extrude, vacuum calibration tank, haul-off machine, cutter, stacker etc.
3.The screw extruder and traction machine adopt imported AC frequency control device.

4. The pipe diameter range :16-63mm or customers' request.

5. The pvc pipe is mostly used in construction industry water supply, drain, electrical cable coating and underground sweage treatment and so on.

6. 0.5-2inch PVC Conduit Pipe Making Machine can produce two pipes at one time to achieve high production efficiency.

Main technical parameters:

Pipe Diameter Scope (mm) 16-50mm 16-63mm
Conical Extruder Model SJSZ51/105 SJSZ65/132
Extruder Power (KW) 18.5kw 37kw
Max. Capacity (KG) 135 250
Max.Production Speed (m/min) 2x10m/min 2x12m/min

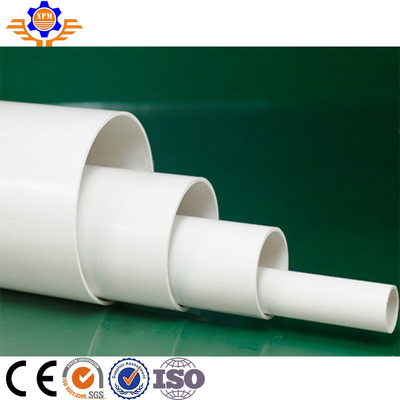

Plastic Conduit Pipe Making Machine Twin Screw Pvc Pipe Manufacturing Machinery 0



ADVANTAGES OF THIS LINE:
1. Two pipes extruded simultaneously and controlled respectively. One ceases and another goes on.
2. A combination of drawing and cutting machine with fine appearance and accurate synchronization.
3. Applicable pipe diameter ranges from 16-63mm.
4. PLC system and user-friendly human-machine interface can be designed to meet customer requirements

It's a collection of reasonable layout, stable performance, synchronization, practicability, especially high capacity, warmly welcomed by customers.



Plastic Conduit Pipe Making Machine Twin Screw Pvc Pipe Manufacturing Machinery 1



Main technical parameters:

Pipe Diameter Scope (mm) 16-50mm 16-63mm
Conical Extruder Model SJSZ51/105 SJSZ65/132
Extruder Power (KW) 18.5kw 37kw
Max. Capacity (KG) 135 250
Max.Production Speed (m/min) 2x10m/min 2x12m/min

Main Parts Details:

1) Extruder screw and barrel from Zhoushan,with vacuum degassing system, can get rid of the waste gas from the raw material which can ensure good quality of final granules.
2) Gearbox: From Jiangyin gearbox company,very famous brand in China,with nice outline, stable running, low noise and long service time.
3) Heating system: adopting cast aluminum heaters with stainless steel plate covers, wind fan cooling system, ensuring good features of cooling and heating, precision temperature controlling.
4) Driving system: adopting Siemens motor, using ABB inverter which provide stable torque output and
various speed.

5) Vacuum calibrating and cooling case: the case body is made by #304 stainless steel, good strength and performance,long life time.
6) Traction machines:Rubber block traction belt,traction speed is adjustable by ABB frequency inverter.
7) Cutting machine: saw blade cutting,low noise,quick cutting performance,with dust collection device.



Plastic Conduit Pipe Making Machine Twin Screw Pvc Pipe Manufacturing Machinery 2
