300mm Pvc Profile Extrusion Machine With Conical Double Screw Plastic Extruder

Brand Name XPM
Certification CE,ISO
Model Number XDXC180/240/300/400/500
Minimum Order Quantity 1 SET
Price 40,000-50,000 USD/SET
Delivery Time 45 WORKING DAYS
Payment Terms T/T
Supply Ability 20 SETS PER MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Contactor Brand Siemens Raw Material PVC
Color Customized Screw Conical Twin Screw
Warranty 1 Year Inverter ABB
Voltage 220V,380V Or Customized Application Plastic Pipe
Output 150-320Kg/H Motor Power 37-110Kw
High Light

300mm pvc profile extrusion machine


350kg/h pvc profile extrusion machine


600kg/h double screw plastic extruder

Leave a Message
Product Description

300mm PVC Ceiling Panel Profile Extrusion Line Conical Double Screw Extruder


1. PVC Ceiling panel extrusion line description:


PVC ceiling panel extrusion line consists of control system conical twin screw extruder, extrusion die, calibration unit, haul-off unit, cutting machine and stacker. This PVC ceiling production line has compact good plasticization, high output capacity, long life and other advantages If change some parts and die head, this PVC ceiling panel extrusion line also can produce other PVC profiles.


Features of PVC Ceiling panel:

1. Protection of the pig partition.

2. farrowing crate.

3. Fireproof and flame retardant

4. High intensity, resist erosion, anti aging and Convenient Installation

5. Fireproof, Heat Insulation, Moisture-Proof, Soundproof, Waterproof

6. Easy Setting and Cleaning

7. Good electric insulation, there is Metal-free, good electrical insulation and thermal stability.

8. Good mechanical strength. The hollow board can be cut, sawing, nailing, which is convenient for the further processing of installation

9. Good flexibility, easy to shape, not easy to brittle.

10. Saving labor costs, Light weight, easy installation, reducing the workload of workers, saving installation costs.


The complete extrusion consists of following items:

Conical Twin Screw Extruder:

It is used for melting and stirring plastic material. SAIJIA adapts special screw and barrel type that provide perfect mixing and homogenous. We use special gear box for the Extruder which has axial bearings. Transfer the motor to the screw. For minimizing electricity consumption, we use the famous brand of driving motor of “SIEMENS” on our Extruder. Automation system designed with PLC and touch panel controller can be selected.

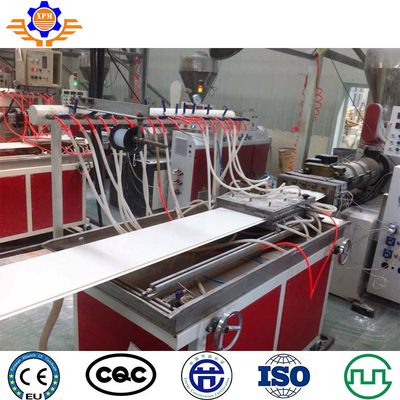

300mm Pvc Profile Extrusion Machine With Conical Double Screw Plastic Extruder 0

  • Mould: Our mould designing gives ideal viscosity to melt material for profile producing. It gives profile or shape to plastic after processing. All faces the plastic in contact with is polish, so that frication losses minimized.
  • Calibration Table:The shaped profile that come from mould is subjected to calibration and cooling processing on the calibration table. The designing of calibration table varies according to the type and characteristic of the profile. The area that contacts with water is made of stainless steel in order to prevent corrosion.
  • Caterpillar Haul-off: The designing of caterpillar haul-off changes depending on the contact area that is related to the profile measurement. The inverter control is standard on all caterpillar haul-off. For this reason, as the speed can adjusted with respect to material output rate. The caterpillar haul-off is also capable of making measurement adjustment through speed control equipment.
  • Saw cutter: In the speedy working condition, profile saw works with high efficiency in term of cutting frequency. As the saw table and clamps move synchronously. The saw cuts the profile in required length. During the cutting processing, swarf and dust appears, in order to prevent these in production area, there is a dust collection unit is integrated in saw cutter. This unit absorbs swarf, dust effectively and removes to storage.
  • Tip-off unit: It operates on pneumatic cylinder.
  • Our extruder lines allow our clients to produce a wide range of PVC and WPC profiles with the following specifications:

300mm Pvc Profile Extrusion Machine With Conical Double Screw Plastic Extruder 1

PVC Ceiling Panel Extrusion Line Parameter:

Model XPM-200 XPM-300 XPM-600
Max. Width 220mm 350mm 600mm
Extruder Model SJSZ-51/105 SJSZ-55/110 SJSZ-65/132
Motor Power 18.5kw 22KW 37KW
Max. Output 120kg/h 150kg/h 250kg/h
Compressed Air 0.2m3/h 0.3m3/h 0.5m3/h
instalaltion power 45KW 55KW 67KW


PVC profile extrusion line technical parameters:


Extruder Model SJZ55/110 SJZ65/132 SJZ80/156 SJZ92/188
Mian motor power 22kw 37kw 55kw 110kw
Auxiliary machine YF200 YF240 YF300 YF600 YF900 YF1200
Production width 200 240 300 600 900 1200
vacuum power 4kwX1 5.5kwX1 5.5kwX1 5.5kwX2 5.5kwX1 7.5kwX1 5.5kwX1 7.5kwX1
water pump 2.2kw 2.2kw 4kw 5.5kw 7.5kw 7.5kw
hauling speed 0-5m/min 0-5m/min 0-5m/min 0-3m/min 0-2.5m/min 0-2.5m/min
capacity 150kg/h 250kg/h 250kg/h 350kg/h 600kg/h 600kg/h
300mm Pvc Profile Extrusion Machine With Conical Double Screw Plastic Extruder 2
