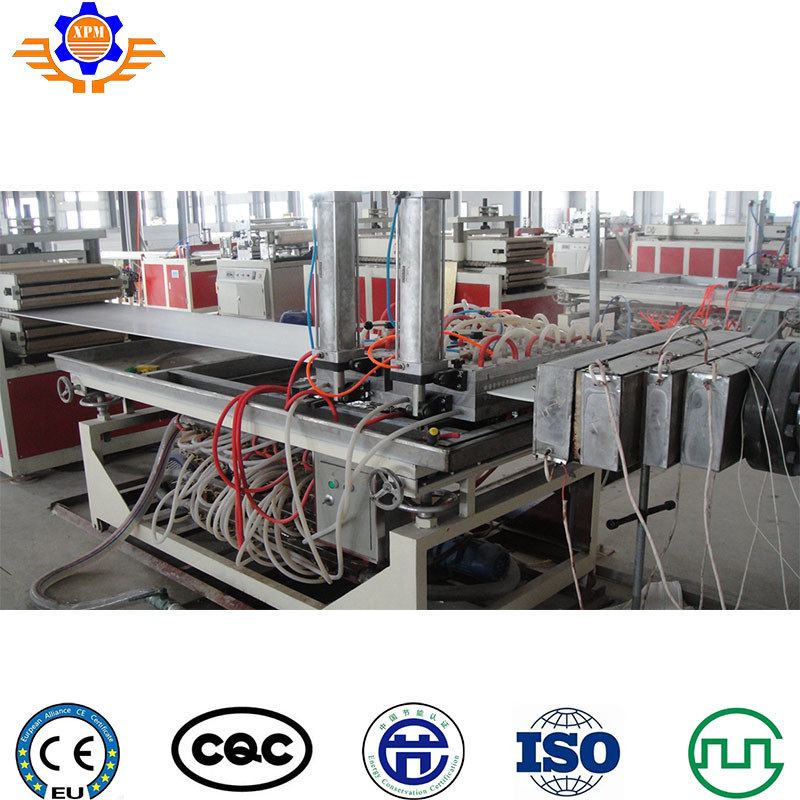

Building Material PVC Ceiling Wall Panel Making Machine Plastic Extruders Line

Place of Origin ZHANGJIAGANG,CHINA
Brand Name XPM
Certification CE,ISO
Model Number YF600/800/1000/1250
Minimum Order Quantity 1 SET
Price 40,000-50,000 USD/SET
Packaging Details WOODEN CASE PACKING AND PLASTIC FILM
Delivery Time 45 WORKING DAYS
Payment Terms T/T
Supply Ability 20 SETS PER MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Contactor Brand Siemens Raw Material PVC,WPC
Color Customized Screw Conical Twin Screw
Warranty 1 Year Inverter ABB
Voltage 220V,380V Or Customized Application Decorative Materials
Output 150-320Kg/H Motor Power 37Kw
High Light

pvc ceiling panel making machine

,

pvc ceiling panel making machine

,

wall panel production line

Leave a Message
Product Description

Hot Selling Building Material PVC Ceiling Wall Panel Making Machine Plastic Extruders Machine

Product Description

Building Material PVC Ceiling Wall Panel Making Machine Plastic Extruders Line 0

Plastic ceiling board extrusion line is used to produce plastic board with width from 600 to 1250mm, which are effective,safe
Capacity: Conical twin-screw extruder, suitable for process PVC powder with high capacity
Diameter: We have very successful production experience.Auxiliary machine closely meet customer specifications. Nice apperance, automatic control and stable running performance.

Type PVC Ceiling Panel Extrusion Line
Model YF600 YF800 YF1000 YF1250
Max width of product(mm) 600 800 1000 1250
Extruder model SJZ80/156 SJZ80/156 SJZ92/188 SJZ92/188
Extruder power (kw) 55 55 132 132
Max extrusion capacity(kg/h) 280 280 600 600
Cooling water consumption(m³/h) 10 12 15 18
Compressed air consumption(m³/min) 0.6 0.8 1 1.2

Building Material PVC Ceiling Wall Panel Making Machine Plastic Extruders Line 1

PVC wall panel production line is used to produce PVC wall panel with width normally from 250mm to 300mm with different section shape and height,the surface of PVC ceiling panel can be trested by double by hot stamping printing,or by lamination,which can make marble,wooden design on surface of product.



Building Material PVC Ceiling Wall Panel Making Machine Plastic Extruders Line 2

Extruder

Screw and Barrel: Screw and Barrel Material 38CrMoAlA,Nitriding, Surface Chrome plate, Nitriding Layer
Thickness:0.5~0.7mm, Surface Rigidity:800~900HV.

Mould

Extrusion mold material: 40Cr. Calibration mold material: Wearable tin bronze ZQSn5-2-5.

Vacuum Platform

Length: 4-6Meters, Table fore-and-aft Move: Adopt 1.5KW Gearbox Speed Reducer Motor Adjusting Distance equal to 800mm. Table Adjusting: Up-and-down adjusting adopt worm reducer & screw adjusting

Haul-off

Haul-off Bracket Length: 1200mm, Above Haul-off Bracket Compaction Mode: Adopt pneumatic gas
cylinder, Cut Motor Power: 0.75KW*1PC.

Cutter

Cutting action controller : PLC

The impact method:pneumatic impact

Cutter structure:Saw type

Stacker

Stacker length 4m, 1.5mm stainless steel board,
Stacking by Gas cylinder, Adopt limited switch send out cutting signal.







Pre-sale

We provid presales service in various forms,for example,making investment budget,manufacturing planning,etc.So that customers make a reasonable plan with less cost.

Investment budgeting--We provide services of product profit analysis,recommendation of machine and auxiliary equipment and relevant budgeting,human resources allocation and budgeting.

Plant planning--We provide the mounting dimension of the equipment base,design of equipment layout,workshop ventilation,water transmission etc.







Company Profile

Building Material PVC Ceiling Wall Panel Making Machine Plastic Extruders Line 3

SAIJIA MACHINERY

Continously Innovating And Manufacuturing Of Plastic Machinery.ZHANGJIAGANG SAIJIA MACHINERY TECHNOLOGY CO.,LTD.Our main products are: plastic pipe extrusion line and plastic machine.The main products are popular exported to international market,including Russia,Australia, Southeast Asia,Middle East,East Europe.Africa and other countries.



ZHANGJIAGANG SAIJIA MACHINERY TECHNOLOGY CO.,LTD.

Zhangjiagang Saijia was established in 2000. The production experience is mature and rich. Among them, it has been exporting for more than 20 years, and more than 100 countries have exported. The annual export turnover is about 15 million US dollars. Our company's production base covers more than 50,000 square meters. , Modern office and production room more than 35,000 square meters, with experienced high-quality staff team, first-class equipment, perfect and effective quality assurance system, advanced and complete testing equipment.



Workshop

We know the quality is the life of our company. Our company insists to manufacture all machine units by ourselves in order to control quality strictly by our quality inspectors. To implement this concept, we have built our own tooling and CNC workshop. Even if some parts from our certified supplier, our quality inspector will check these parts before entering into our warehouse.

Building Material PVC Ceiling Wall Panel Making Machine Plastic Extruders Line 4
Warmly welcome to visit our workshop, and sincerely hope we can have long term cooperation in near future!



Building Material PVC Ceiling Wall Panel Making Machine Plastic Extruders Line 5

Certificates

International certification, verification certificates of equipment include:CE electrical certificate, CE mechanical certificate, ISO quality management certificate, Nigerian quality certificate etc.



Building Material PVC Ceiling Wall Panel Making Machine Plastic Extruders Line 6

FAQ

Q.1.ARE YOU A MANUFACTURER OR TRADING COMPANY?

● SaiJia is a manufacturer who is registered in the Chinese Business Administration and has the right to operate and sell it legally.
● SaiJia cooperates with Ecer who will supply you a lot of service to protect you .
● SaiJia has a professional engineer team who all have more than 20 years experience in plastic pipe extrusion line and plastic machinee manufacturing .

Q.2.HOW TO VISIT OUR FACTORY?

● If you are interested in our products, you may visit our factory at any time , we can pick you up from the station(Wuxi East Railway Station) or the airport near our city .
● Seeing is believing , you can see our machine quality after your visit .

Q.3.HOW TO ENSURE THE MACHINE QUALITY?

● In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have accumulated professional processing methods over the past years.
● Each component before assembly needs strictly control by inspecting personnel.
● Before shipping, the whole machine will be commissioned in our factory to make sure it can run well in your factory.

Q.4.HOW TO GUARANTEE YOUR FUNDS?

● We go through bank letter of credit service, which can protect your funds to be safe.
● We will send you pictures of the machine every week to ensure the delivery.

Q.5.SAIJIA AFTER-SALE SERVICE

● We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly
● When you finish the preparation conditions,our fast and professional after service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.
● We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.
● We provide 1 year warranty with spare parts free and life-long technical support .
