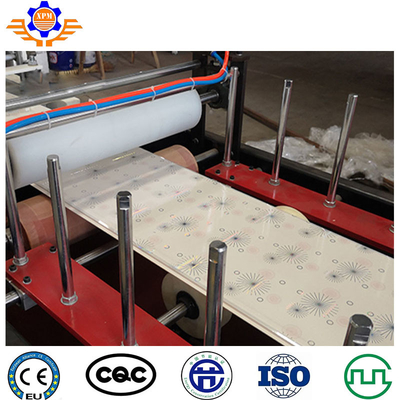

55kw PVC Ceiling Production Line WPC Wall Panel Making Machine With Lamination Machine
|Contactor Brand||Siemens||Raw Material||PVC,WPC|
|Color||Customized||Screw||Conical Twin Screw|
|Voltage||220V,380V Or Customized||Application||Decorative Materials|
55kw PVC Ceiling Production Line,
280kg/h PVC Ceiling Production Line,
WPC pvc wall panel making machine
Plastic PVC Ceiling Wall Panel Board Extruder Production Line With Lamination Machine
Plastic ceiling board extrusion line is used to produce plastic board with width from 600 to 1250mm, which are effective,safe
Capacity: Conical twin-screw extruder, suitable for process PVC powder with high capacity
Diameter: We have very successful production experience.Auxiliary machine closely meet customer specifications. Nice apperance, automatic control and stable running performance.
|Type||PVC Ceiling Panel Extrusion Line|
|Max width of product(mm)||600||800||1000||1250|
|Extruder power (kw)||55||55||132||132|
|Max extrusion capacity(kg/h)||280||280||600||600|
|Cooling water consumption(m³/h)||10||12||15||18|
|Compressed air consumption(m³/min)||0.6||0.8||1||1.2|
PVC wall panel production line is used to produce PVC wall panel with width normally from 250mm to 300mm with different section shape and height,the surface of PVC ceiling panel can be trested by double by hot stamping printing,or by lamination,which can make marble,wooden design on surface of product.
Screw and Barrel: Screw and Barrel Material 38CrMoAlA,Nitriding, Surface Chrome plate, Nitriding Layer
Thickness:0.5~0.7mm, Surface Rigidity:800~900HV.
Extrusion mold material: 40Cr. Calibration mold material: Wearable tin bronze ZQSn5-2-5.
Length: 4-6Meters, Table fore-and-aft Move: Adopt 1.5KW Gearbox Speed Reducer Motor Adjusting Distance equal to 800mm. Table Adjusting: Up-and-down adjusting adopt worm reducer & screw adjusting
Haul-off Bracket Length: 1200mm, Above Haul-off Bracket Compaction Mode: Adopt pneumatic gas
cylinder, Cut Motor Power: 0.75KW*1PC.
Cutting action controller : PLC
The impact method:pneumatic impact
Cutter structure:Saw type
Stacker length 4m, 1.5mm stainless steel board,
Stacking by Gas cylinder, Adopt limited switch send out cutting signal.
ZHANGJIAGANG SAIJIA MACHINERY TECHNOLOGY CO.,LTD.
Zhangjiagang Saijia was established in 2000. The production experience is mature and rich. Among them, it has been exporting for more than 20 years, and more than 100 countries have exported. The annual export turnover is about 15 million US dollars. Our company's production base covers more than 50,000 square meters. , Modern office and production room more than 35,000 square meters, with experienced high-quality staff team, first-class equipment, perfect and effective quality assurance system, advanced and complete testing equipment.
Warmly welcome to visit our workshop, and sincerely hope we can have long term cooperation in near future!
International certification, verification certificates of equipment include:CE electrical certificate, CE mechanical certificate, ISO quality management certificate, Nigerian quality certificate etc.
Q.1.ARE YOU A MANUFACTURER OR TRADING COMPANY?
● SaiJia is a manufacturer who is registered in the Chinese Business Administration and has the right to operate and sell it legally.
● SaiJia cooperates with Ecer who will supply you a lot of service to protect you .
● SaiJia has a professional engineer team who all have more than 20 years experience in plastic pipe extrusion line and plastic machinee manufacturing .
Q.2.HOW TO VISIT OUR FACTORY?
● If you are interested in our products, you may visit our factory at any time , we can pick you up from the station(Wuxi East Railway Station) or the airport near our city .
● Seeing is believing , you can see our machine quality after your visit .
Q.3.HOW TO ENSURE THE MACHINE QUALITY?
● In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have accumulated professional processing methods over the past years.
● Each component before assembly needs strictly control by inspecting personnel.
● Before shipping, the whole machine will be commissioned in our factory to make sure it can run well in your factory.
Q.4.HOW TO GUARANTEE YOUR FUNDS?
● We go through bank letter of credit service, which can protect your funds to be safe.
● We will send you pictures of the machine every week to ensure the delivery.
Q.5.SAIJIA AFTER-SALE SERVICE
● We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly
● When you finish the preparation conditions,our fast and professional after service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.
● We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.
● We provide 1 year warranty with spare parts free and life-long technical support .
