380V PVC Edge Banding Making Machine PVC Sheet Extrusion Machine Production Line

Place of Origin ZHANGJIAGANG,CHINA
Brand Name XPM
Certification CE,ISO
Model Number SJSZ
Minimum Order Quantity 1 SET
Price 20,000-30,000 USD/SET
Packaging Details WOODEN CASE PACKING AND PLASTIC FILM
Delivery Time 45 WORKING DAYS
Payment Terms T/T
Supply Ability 20 SETS PER MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Contactor Brand Siemens Raw Material PVC
Color Customized Screw Conical Twin Screw
Warranty 1 Year Inverter ABB
Voltage 220V,380V Or Customized Application Decorative Materials
Output 50-100Kg/H Motor Power 37Kw
High Light

380V pvc edge banding tape machine

,

pvc edge banding tape machine ISO9001

,

80mm pvc sheet extrusion machine

Leave a Message
Product Description

PVC Edge Banding Making Machine / PVC Sheet Extrusion Machine / PVC Profiles Production Line



Product Description

The PVC edge banding tape is made up of PVC resin, calcium carbonate and various excipients (stabilizer, DOP oil, ACR, stearic acid, carbon white powder, toner, anti-aging agent, etc.).
PVC edge banding tape are widely used in furniture, office, kitchen utensils, teaching equipment, civil laboratory and so on. The thickness is from 0.3 to 3mm, and the width is from 12mm to 80mm.


The main function of the PVC edge banding tape is to seal the cross section of the sheet so as to avoid damage to the board and prevent formaldehyde from volatilization in the environment and use process, and achieve the effect of decoration and beauty.

The PVC edge banding production line consist of automatic feeder , twin screw extruder , double output extrusion mold , embossing device , cooling calibration equipment , synchronized hauling off unit , glue coating device , winding machine , printing line , etc . compare with the normal single screw extruder , we adopt the twin screw extrusion line , it can feed the PVC powder directly , don’t need to produce the plastic granules first step , it will save the invest the pelletizing machinery , and reduce the production cost largely . and the double screw extruder can be made double output or four output , it increase the production capacity .



PVC edge banding has the characters as heat tolerance , oil proof , high hardness , abrasion resistant and excellent bendability , the surface can be printed different pattern , like the natural wood pattern or any other wonderful pattern , also the surface also can be laminating or hot stamping with different pattern . the PVC edge banding is recycled , environment-friendly .it’s wide use in furniture , cabinet , door or window , office furniture , shelf , machinery , etc .

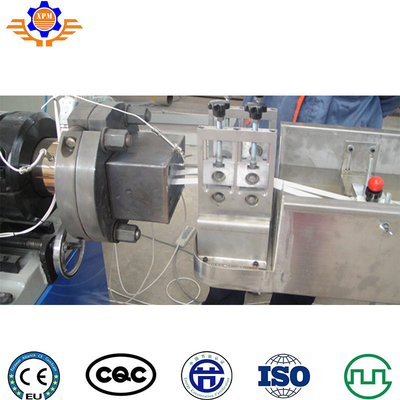

380V PVC Edge Banding Making Machine PVC Sheet Extrusion Machine Production Line 0

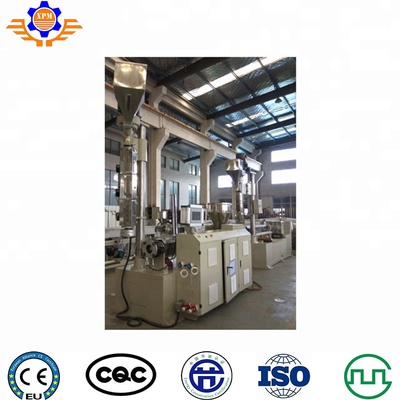

380V PVC Edge Banding Making Machine PVC Sheet Extrusion Machine Production Line 1

The PVC edge banding stick well with PVC foam board , WPC board , plywood , particleboard , etc . it is easy to stick with the different board , always it adopt the special sticking device to do the work , the glue always adopt the hot melt adhesive .

Product Application

1. material: PVC
2. width: 9mm to 50mm, your special requirement is also welcomed
3. thickness: 0.4mm to 3mm, welcome your specific requirement
4. special size could be designed
5. color: solid color or wood grain, color could be design according to customer
color sample

No. Equipment name Quantity
1. Screw feeder 1set
2. SJ65/25 Single Screw Extruder 1set
3. mould 1 set
4. Cooling water baths 1 set
5. Haul off machine 1 set
6. Winding machine 2 set

380V PVC Edge Banding Making Machine PVC Sheet Extrusion Machine Production Line 2



380V PVC Edge Banding Making Machine PVC Sheet Extrusion Machine Production Line 3



Company Profile

380V PVC Edge Banding Making Machine PVC Sheet Extrusion Machine Production Line 4

SAIJIA MACHINERY

Continously Innovating And Manufacuturing Of Plastic Machinery.ZHANGJIAGANG SAIJIA MACHINERY TECHNOLOGY CO.,LTD.Our main products are: plastic pipe extrusion line and plastic machine.The main products are popular exported to international market,including Russia,Australia, Southeast Asia,Middle East,East Europe.Africa and other countries.



ZHANGJIAGANG SAIJIA MACHINERY TECHNOLOGY CO.,LTD.

Zhangjiagang Saijia was established in 2000. The production experience is mature and rich. Among them, it has been exporting for more than 20 years, and more than 100 countries have exported. The annual export turnover is about 15 million US dollars. Our company's production base covers more than 50,000 square meters. , Modern office and production room more than 35,000 square meters, with experienced high-quality staff team, first-class equipment, perfect and effective quality assurance system, advanced and complete testing equipment.



Workshop

We know the quality is the life of our company. Our company insists to manufacture all machine units by ourselves in order to control quality strictly by our quality inspectors. To implement this concept, we have built our own tooling and CNC workshop. Even if some parts from our certified supplier, our quality inspector will check these parts before entering into our warehouse.

380V PVC Edge Banding Making Machine PVC Sheet Extrusion Machine Production Line 5


Warmly welcome to visit our workshop, and sincerely hope we can have long term cooperation in near future!



380V PVC Edge Banding Making Machine PVC Sheet Extrusion Machine Production Line 6

Certificates

International certification, verification certificates of equipment include:CE electrical certificate, CE mechanical certificate, ISO quality management certificate, Nigerian quality certificate etc.



380V PVC Edge Banding Making Machine PVC Sheet Extrusion Machine Production Line 7
