PVC ASA Three Layers Plastic Tile Extrusion Line Glazed Roof Tile Making Machine

Place of Origin ZHANGJIAGANG,CHINA
Brand Name XPM
Certification CE,ISO
Model Number SRL-Z200/500
Minimum Order Quantity 1 SET
Price 90,000-120,000 USD/SET
Packaging Details WOODEN CASE PACKING AND PLASTIC FILM
Delivery Time 45 WORKING DAYS
Payment Terms T/T
Supply Ability 20 SETS PER MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Contactor Brand Siemens Raw Material PVC,WPC
Color Customized Screw Conical Twin Screw
Warranty 1 Year Inverter ABB
Voltage 220V,380V Or Customized Application PVC Hollow Tile
Output 150-320Kg/H Motor Power 37Kw
High Light

PVC ASA Plastic Tile Extrusion Line

,

Three Layers Plastic Tile Extrusion Line

,

37Kw glazed roof tile making Machine

Leave a Message
Product Description

Plastic PVC ASA Three Layers Roofing Tile Glazed Roof Tile Extruding Machine


Advantage:
Anti-noisy,anti-erosion,heating resistance and water proof.
Features:
1.Optional to adopt conical twin screw extruder and parallel twin screw extruder.
2.Supply formula guide and staple raw material purchase
3.Professional analyzing and design by considering production cost and tiles' performance.
4.Single layer or A+B/A+B+C/A+B+A layers avaibable

Products Description
PVC ASA Three Layers Plastic Tile Extrusion Line Glazed Roof Tile Making Machine 0

Extrusion Part

1. forced extruding
2. high quality
3.wide adaptability
4.long working life
5.low shearing speed
6.hard decomposition
7.good compounding& plasticization effect
8.direct shaping of powder material and etc.
PVC ASA Three Layers Plastic Tile Extrusion Line Glazed Roof Tile Making Machine 1

Mould Part

Name: T-DIA or Ectrusion mould
1. Clothes hanger runner
2. Mirror polishing Cr plating
3. Three dimensional flow simulation software design
PVC ASA Three Layers Plastic Tile Extrusion Line Glazed Roof Tile Making Machine 2

Embossing Roller

1. Up roller is Embossing roller, the down roller is mirror Roller. Roller surface treatment by hard chrome plated (depth 0.10-0.15)
2. Design of spiral flow passage in roller
3. Motor separately drive to ensure consistent speed
PVC ASA Three Layers Plastic Tile Extrusion Line Glazed Roof Tile Making Machine 3

Forming Machine

Name: Corrugated Roof Tile Forming Machine
1.Haul off roller material: Neoprene CR
2.Rise and drop method of mould: pneumatic
3.Fine adjustment method: manual
PVC ASA Three Layers Plastic Tile Extrusion Line Glazed Roof Tile Making Machine 4

Cutter

Technical Parameters:
1.Special positioning cevice to ensure the cutting accuracy
2.Cutting method for the saw blade cutting
3.The horizontal movement motor is 0.37kw
4.PLC HMI operation
PVC ASA Three Layers Plastic Tile Extrusion Line Glazed Roof Tile Making Machine 5

Crusher

Technical Parameters:
1.The motor power is 11kw,15kw,22kw,30kw
2.Broken the amount of 200-600kg/h
3.Broken diameter 510*290
The main purpose:
Used for on-line production to produce edge scraps for recycling

PVC ASA Three Layers Plastic Tile Extrusion Line Glazed Roof Tile Making Machine 6


High Speed Mixer Unit

Name: High speed mixing unit
Technical parameters:
Model Capacity (kg/hr) Motor(kw)
SRL-Z200/500 350-450 30/42
SRL-Z300/600 550-650 40/55
SRL-Z500/1000 750-1000 55/75

PVC ASA Three Layers Plastic Tile Extrusion Line Glazed Roof Tile Making Machine 7

High Speed Mixing Unite

Name: High speed mixing unit
Technical parameters:
Model Capacity (kg/hr) Motor(kw)
SRL-Z200/500 350-450 30/42
SRL-Z300/600 550-650 40/55
SRL-Z500/1000 750-1000 55/75


No. Machine name Qty
1 Screw conveyor(with push device) 1pc
2 conical two screw extruder 1pc
3 Vacuum feeder for pellet 1pc
4 Drying hopper 1pc
5 single screw extruder 1pc
6 Extrusion mould 1pc
7 Distributor 1pc
8 Embossing roller 1pc
9 Forming machine with trimming device 1pc
10 Cutter 1pc
11 Stacket 1pc
12 Forming for ridger 1pc
13 Mould of top rodge,three way ridge,hip rodge,end of ridge 4pcs
14 Oven 1pc
15 Mixer unit 1pc
16 Screw conveyor for mixer unit 1pc


Product Application
PVC ASA Three Layers Plastic Tile Extrusion Line Glazed Roof Tile Making Machine 8
PVC ASA Three Layers Plastic Tile Extrusion Line Glazed Roof Tile Making Machine 9

Product Application

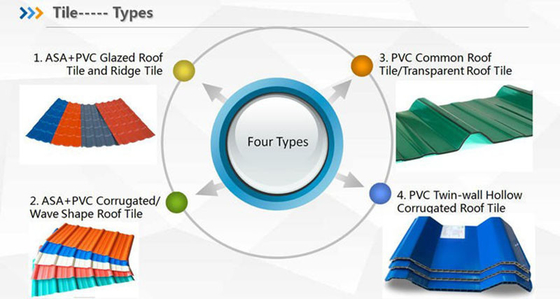

Machine name: Plastic PVC Composite Roof Tile Making machine
Finished product : Plastic roofing , PVC composite roofing , Plastic corrugated roofing

PVC ASA Three Layers Plastic Tile Extrusion Line Glazed Roof Tile Making Machine 10

Product features:

Using life more than 20years
Good sound and heat insulation
Fire resistance, anti-corrosion
Using recycled PVC ,environment-friendly
Excellent anti-load performance
Easy to install, packing and transport
PVC ASA Three Layers Plastic Tile Extrusion Line Glazed Roof Tile Making Machine 11
Plants, steel factories, warehouse, farm market, market access, sheds and other high-end roofing materials. Especially in corrosive chemical plants, smelters, ceramic plants, soy sauce factory, chemical plant, printing and dyeing plant, organic solvent factory, acid, alkali and other corrosive plant.
