220V PVC Plastic Tile Extrusion Line WPC Manual Roof Tile Making Machine Glazed Extrusion

Place of Origin ZHANGJIAGANG,CHINA
Brand Name XPM
Certification CE,ISO
Model Number SRL-Z200/500
Minimum Order Quantity 1 SET
Price 90,000-120,000 USD/SET
Packaging Details WOODEN CASE PACKING AND PLASTIC FILM
Delivery Time 45 WORKING DAYS
Payment Terms T/T
Supply Ability 20 SETS PER MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Contactor Brand Siemens Raw Material PVC,WPC
Color Customized Screw Conical Twin Screw
Warranty 1 Year Inverter ABB
Voltage 220V,380V Or Customized Application PVC Hollow Tile
Output 150-320Kg/H Motor Power 37Kw
High Light

220V Plastic Tile Extrusion Line

,

37Kw Plastic Tile Extrusion Line

,

WPC manual roof tile making machine

Leave a Message
Product Description

PVC Plastic Roofing Tile Making Machine Production Line Glazed Extrusion Line



Advantage:
Anti-noisy,anti-erosion,heating resistance and water proof.
Features:
1.Optional to adopt conical twin screw extruder and parallel twin screw extruder.
2.Supply formula guide and staple raw material purchase
3.Professional analyzing and design by considering production cost and tiles' performance.
4.Single layer or A+B/A+B+C/A+B+A layers avaibable


No. Machine name Qty
1 Screw conveyor(with push device) 1pc
2 conical two screw extruder 1pc
3 Vacuum feeder for pellet 1pc
4 Drying hopper 1pc
5 single screw extruder 1pc
6 Extrusion mould 1pc
7 Distributor 1pc
8 Embossing roller 1pc
9 Forming machine with trimming device 1pc
10 Cutter 1pc
11 Stacket 1pc
12 Forming for ridger 1pc
13 Mould of top rodge,three way ridge,hip rodge,end of ridge 4pcs
14 Oven 1pc
15 Mixer unit 1pc
16 Screw conveyor for mixer unit

1pc



220V PVC Plastic Tile Extrusion Line WPC Manual Roof Tile Making Machine Glazed Extrusion 0

Products Description
220V PVC Plastic Tile Extrusion Line WPC Manual Roof Tile Making Machine Glazed Extrusion 1

Extrusion Part

1. forced extruding
2. high quality
3.wide adaptability
4.long working life
5.low shearing speed
6.hard decomposition
7.good compounding& plasticization effect
8.direct shaping of powder material and etc.
220V PVC Plastic Tile Extrusion Line WPC Manual Roof Tile Making Machine Glazed Extrusion 2

Mould Part

Name: T-DIA or Ectrusion mould
1. Clothes hanger runner
2. Mirror polishing Cr plating
3. Three dimensional flow simulation software design
220V PVC Plastic Tile Extrusion Line WPC Manual Roof Tile Making Machine Glazed Extrusion 3

Embossing Roller

1. Up roller is Embossing roller, the down roller is mirror Roller. Roller surface treatment by hard chrome plated (depth 0.10-0.15)
2. Design of spiral flow passage in roller
3. Motor separately drive to ensure consistent speed
220V PVC Plastic Tile Extrusion Line WPC Manual Roof Tile Making Machine Glazed Extrusion 4

Forming Machine

Name: Corrugated Roof Tile Forming Machine
1.Haul off roller material: Neoprene CR
2.Rise and drop method of mould: pneumatic
3.Fine adjustment method: manual
220V PVC Plastic Tile Extrusion Line WPC Manual Roof Tile Making Machine Glazed Extrusion 5

Cutter

Technical Parameters:
1.Special positioning cevice to ensure the cutting accuracy
2.Cutting method for the saw blade cutting
3.The horizontal movement motor is 0.37kw
4.PLC HMI operation
220V PVC Plastic Tile Extrusion Line WPC Manual Roof Tile Making Machine Glazed Extrusion 6

Crusher

Technical Parameters:
1.The motor power is 11kw,15kw,22kw,30kw
2.Broken the amount of 200-600kg/h
3.Broken diameter 510*290
The main purpose:
Used for on-line production to produce edge scraps for recycling

220V PVC Plastic Tile Extrusion Line WPC Manual Roof Tile Making Machine Glazed Extrusion 7


High Speed Mixer Unit

Name: High speed mixing unit
Technical parameters:
Model Capacity (kg/hr) Motor(kw)
SRL-Z200/500 350-450 30/42
SRL-Z300/600 550-650 40/55
SRL-Z500/1000 750-1000 55/75

220V PVC Plastic Tile Extrusion Line WPC Manual Roof Tile Making Machine Glazed Extrusion 8

High Speed Mixing Unite

Name: High speed mixing unit
Technical parameters:
Model Capacity (kg/hr) Motor(kw)
SRL-Z200/500 350-450 30/42
SRL-Z300/600 550-650 40/55
SRL-Z500/1000 750-1000 55/75


No. Machine name Qty
1 Screw conveyor(with push device) 1pc
2 conical two screw extruder 1pc
3 Vacuum feeder for pellet 1pc
4 Drying hopper 1pc
5 single screw extruder 1pc
6 Extrusion mould 1pc
7 Distributor 1pc
8 Embossing roller 1pc
9 Forming machine with trimming device 1pc
10 Cutter 1pc
11 Stacket 1pc
12 Forming for ridger 1pc
13 Mould of top rodge,three way ridge,hip rodge,end of ridge 4pcs
14 Oven 1pc
15 Mixer unit 1pc
16 Screw conveyor for mixer unit 1pc


Product Application
220V PVC Plastic Tile Extrusion Line WPC Manual Roof Tile Making Machine Glazed Extrusion 9
220V PVC Plastic Tile Extrusion Line WPC Manual Roof Tile Making Machine Glazed Extrusion 10

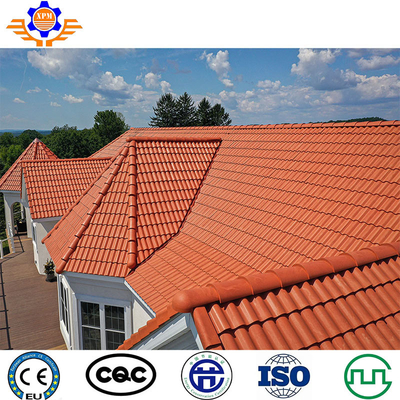

Product Application

Machine name: Plastic PVC Composite Roof Tile Making machine
Finished product : Plastic roofing , PVC composite roofing , Plastic corrugated roofing

220V PVC Plastic Tile Extrusion Line WPC Manual Roof Tile Making Machine Glazed Extrusion 11

Product features:

Using life more than 20years
Good sound and heat insulation
Fire resistance, anti-corrosion
Using recycled PVC ,environment-friendly
Excellent anti-load performance
Easy to install, packing and transport
220V PVC Plastic Tile Extrusion Line WPC Manual Roof Tile Making Machine Glazed Extrusion 12
Plants, steel factories, warehouse, farm market, market access, sheds and other high-end roofing materials. Especially in corrosive chemical plants, smelters, ceramic plants, soy sauce factory, chemical plant, printing and dyeing plant, organic solvent factory, acid, alkali and other corrosive plant.
