15000Kg/H Granules Pellets Color Mixer Auxiliary Machine Vertical Stainless Steel Stand Mixer

Place of Origin ZHANGJIAGANG,CHINA
Brand Name XPM
Certification CE,ISO
Model Number SRL-Z/W
Minimum Order Quantity 1 SET
Price 8,000-15,000 USD/SET
Packaging Details WOODEN CASE PACKING AND PLASTIC FILM
Delivery Time 45 WORKING DAYS
Payment Terms T/T
Supply Ability 20 SETS PER MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Contactor Brand Siemens Raw Material Raw Granules Powder Materials
Color Customized Warranty 1 Year
Voltage 220V,380V Or Customized Application Plastic Powder Mixing
Output 50 - 15000Kg/H Motor Power 7.5-315Kw
High Light

15000Kg/H Auxiliary Machine

,

Granules pellets Color Mixer Auxiliary Machine

,

Vertical stainless steel stand mixer

Leave a Message
Product Description

High Quality Stainless Steel Vertical Mixer Plastic Granules Ppellets Color Mixer



Product Description

High speed vertical horizontal pvc wood plastic composite mixer machine for pvc compound powder mixing plastic extrusion line

Model: SRL-Z Series Vertical Mixing Unit



SRL-W series mixer machine , main for big volume plastic raw materials mixing , drying ,color mixing , dehydration ,etc. such as polyethylene, polyvinyl chloride and other ingredients , it equip with the top quality / famous brand electric parts , such as SIMENS , SCHNEIDER , etc . Adopt the advantage PLC control system , the mixing blade raw materials is stainless steel , especially the cooling mixer adopt the screw mix structure to avoid any dead angle . Mixing fast , cooling quick , discharge completely .

we also can equip with the dosing feeder system at customer’s demands . please check the following photos.

◆ SRL series of high-speed mixer machine combine with hot mixer + cold mixer, automatic
conversion, automatic discharge.

◆ Spindle sealing device won the national patent.

◆ hot mix with self-friction and electric heating and steam heating function.

◆ double-sealed pot cover. Cold mixer adopt the arched lid, not easily deformed.

◆ has a compact structure, beautiful appearance and so on.

◆ equipped with pulse dust removal device.

◆ the mix blades through the static and dynamic balance test.

SRL-W series of horizontal mixer unit main technology parameter :

model SRL-Z300/1000 SRL-Z500/1500 SRL-Z800/2500 SRL-Z1000/3000 SRL-Z1600/4000
Hot/cool mix Hot/cool mix Hot/cool mix Hot/cool mix Hot/cool mix
Total volume (L) 300/1000 500/1500 800/2500 1000/3000 800×2/4000
Effective volume (L) 225/700 330/1000 600/1500 700/2100 1200/2700
Blade rotation speed (r/min) 475/950/80 430/860/70 370/740/60 300/600/50 350/700/65
Heating & cooling type Electric +self-friction / water cooling
Mix time (min) 8-12 8-15 8-15 8-12 8-12
Power (kw) 40/55/7.5 55/75/15 83/110/22 110/160/30 83/110×2/30
Weight (kg) 3300 4200 5500 6500 8000

15000Kg/H Granules Pellets Color Mixer Auxiliary Machine Vertical Stainless Steel Stand Mixer 0

15000Kg/H Granules Pellets Color Mixer Auxiliary Machine Vertical Stainless Steel Stand Mixer 1



SRL-Z series PVC mixer unit, apply to variety resins mixing: such as polyethylene, polyvinyl chloride and other ingredients, mixing, coloring, drying ,also for ABS, polycarbonate and other plastic drying, dehydration process before molding process , also In the phenol resin mixture. The unit combines the hot mix and the cold mix process, after hot mix , the material is automatically discharge into the cold mixer ,then exhaust the residual gas and prevent agglomeration.

◆ SRL series of high-speed mixer unit combine with hot mixer + cold mixer, automatic conversion & discharge.

◆ Spindle sealing device won the national patent.

◆ hot mix with self-friction and electric heating and steam heating function.

◆ double-sealed pot cover. Cold mixer adopt the arched lid, not easily deformed.

◆ has a compact structure, beautiful appearance and so on.

◆ equipped with pulse dust removal device.

◆ the mix blades through the static and dynamic balance test.

SRL-Z series of vertical mixer units main technology parameter :

model SRL-Z100/300 SRL-Z200/500 SRL-Z300/600 SRL-Z500/1000 SRL-Z800/600
Hot/cool mix Hot/cool mix Hot/cool mix Hot/cool mix Hot/cool mix
Total volume (L) 100/300 200/500 300/600 500/1000 800/1600
Effective volume (L) 65/195 150/320 225/380 330/660 600/1050
Blade rotation speed (r/min) 650/1300/200 475/950/130 475/950/100 430/860/70 370/740/50
Heating & cooling type Electric +self-friction / water cooling
Mix time (min) 8-12 8-12 8-12 8-15 8-15
Power (kw) 14/22/7.5 30/42/11 40/55/11 55/75/15 83/110/22
Dimensions (m) 1.95*1.6*1.8 4.58*2.24*2.47 4.8*2.64*2.48 5.6*3*3.1 5.17*3.2*4.48
Weight (kg) 2500 3400 3600 6500 9800

15000Kg/H Granules Pellets Color Mixer Auxiliary Machine Vertical Stainless Steel Stand Mixer 2



15000Kg/H Granules Pellets Color Mixer Auxiliary Machine Vertical Stainless Steel Stand Mixer 3

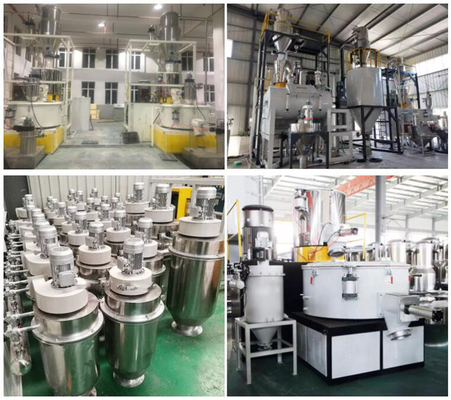

Detailed Images

15000Kg/H Granules Pellets Color Mixer Auxiliary Machine Vertical Stainless Steel Stand Mixer 4
