PE HDPE PPR Pipe Extrusion Line 20 - 110mm Plastic Pipe Making Machine

Brand Name XPM
Certification CE,ISO
Model Number 20-63MM
Minimum Order Quantity 1 SET
Price 20,000-25,000 USD/SET
Delivery Time 45 WORKING DAYS
Payment Terms L/C, T/T
Supply Ability 20 SETS PER MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Contactor Brand Siemens Raw Material PE,PP,HDPE
Color Customized Screw Conical Twin Screw
Warranty 1 Year Inverter ABB
Voltage 220V,380V Or Customized Application Plastic Pipe
Output 150Kg/H Motor Power 55Kw
High Light

PPR Pipe Extrusion Line


HDPE Pipe Extrusion Line 20mm


PPR Pipe Making Line

Leave a Message
Product Description

PE HDPE PPR Pipe Extrusion Line 20-110mm Plastic Pipe Making Line Extruder Machine

PE pipe extrusion line
Applying advanced latest European Technology. It's suitable for pipe extrusion such as PE, PP, PB, PE-RT and ABS, etc. It has nice out-look, automatic control and stable running. It's welcomed by clients for its "European performance but Chinese price". It can also produce multi-layer composite pipe, agriculture irrigation pipe and cable protection pipe, etc. It is the best choice replacing imported extrusion equipments.



  • Single Screw Extruder:

Extruder machine is applied for melting and stirring PE.

Saijia employs the specific screw and barrel for material type that provides perfect mixing and homogeneous.

Our single screw extruders are featured high level technical solution such as screw geometry that is suitable for processing the plastic pipe extrusion. We use high wear resistant screw and barrel to make accurate control of melt conditions, homogenous temperature and pressure without variation and surging.

We use special gearbox for the extruder, which has axial bearings. Transfer the motor to the screw. For minimizing electricity consumption, we use the famous brand of driving motor of “SIEMENS” on our Extruder. Automation system designed with PLC and touch panel controller can be selected.

  • Die-Head:

Our die-head designing gives ideal viscosity to melt material for pipe producing. It gives tube or shape to plastic after processing. All faces the plastic in contact with is polish, so that frication losses minimized.

We produce single layer, two layer and multi layer pipe die-heads. Foil cover head. Over steel pipe plastic covering die-head and other special die-head.

  • Vacuum Tank:

The Vacuum Tanks are manufactured with stainless steel.

Our nozzles designing for maximum cooling performance. Cooled water sprinkles to hot plastic pipe outside face from the nozzles.

With high power water pump, cooled water can reach to pipe completely.

Our vacuum tank’s pressure can be adjusted, so vacuum pressure can be fixed according to pipe requirement.

We sealing gasket for every lid on the vacuum tank. This stops vacuum leakage and minimizing energy consumption.

  • Haul-off:

With the material we have used in our haul-off, we have very good adhesion to the pipe and ensure slip prevented.

The needed speed for setting of pallets can be changed with electrical inverter. Different line speeds are adjusted by using control panel easily.

We manufacture haul-off depending on pipe diameter from 2 pallets to 10 pallets.

Our haul-offs can work synchronously with pipeline. As the extruder speed increasing automatically, haul-offs speed is increased.

  • No Swarf / Dust Cutter:

The planetary saw cuts the pipe at designed length without any burr.

The cutting speed during the cutting is synchronous with the line speed by PLC, so accurate length is provided.

Pipe length to be cut is easily adjusted via the touch screen.

Pipe length measure by encode so desired length can cut precisely.

  • Tipping Table:

It operates on pneumatic cylinder.

  • Pipe coiler:

The coiler is applied for winding PE pipes, corrugated pipes and dripping pipes.

We use torque motor for positioning pipes on the coil, that provides accuracy of coiling.

Our coilers can coil dia.16mm pipe up to dia. 125mm pipe. With the torque setting, tension of the pipe coming from the extrusion line can be adjusted easily.

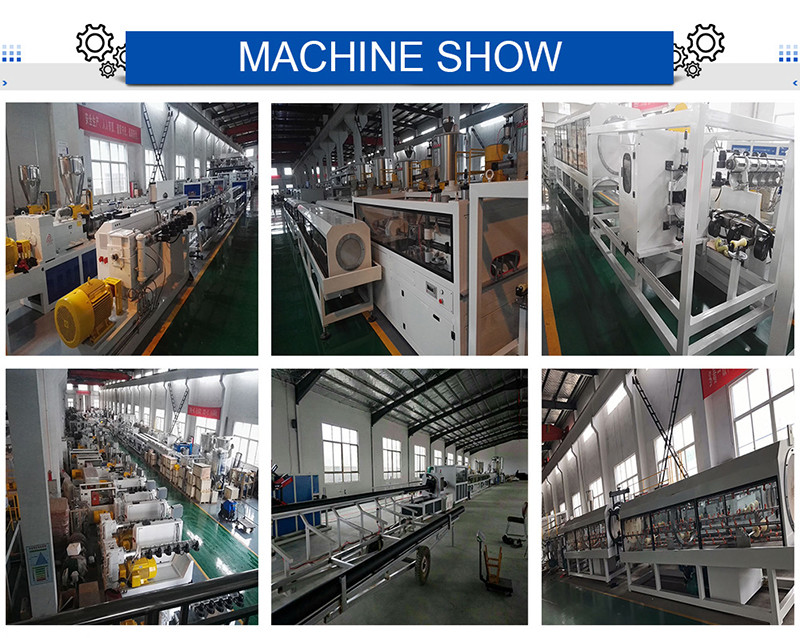

PE HDPE PPR Pipe Extrusion Line 20 - 110mm Plastic Pipe Making Machine 0



XPM-63 20-63 SJ65/33 55AC
XPM-110 20-110 SJ65/33 55AC
XPM-160 75-160 SJ75/33 90AC
XPM-250 90-250 SJ75/33 110DC
XPM-315 110-315 SJ90/33 160DC
XPM-450 160-450 SJ90/33 160DC
XPM-630 315-630 SJ120/33 280DC
XPM-800 500-800 SJ150/33 315DC
XPM-1200 710-1200 SJ150/34 400DC


All Extrusion pipe lines can be equipped with various auxiliary equipments in order to meet our customer’s requests and provide solution from a single source.

Volumetric and gravimetric dosing units
Raw material loading units
Belling machines
Ink jet marking units
Winding units
Tilting tables

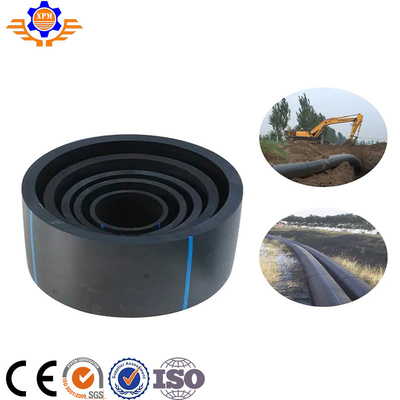

PE HDPE PPR Pipe Extrusion Line 20 - 110mm Plastic Pipe Making Machine 1


1) Are we manufacture or trade company?
We are manufacture,have 20 years' experiences in this field.

2) What kind machines we produce?
Our factory produce plastic pipes machines, plastic machine.

3) What kind payment we accept?
Payment term like T/T.

4) How long we need to produce the machines?
According to different machine model and configuation, we need different time, like 40 days to 2 months.

5) Will the machine be delivered on time ?
Sure,we will deliver your machine up recieving the balance payment.

6) How about the machine quality?
Our machine quality is reliable.We select every parts on the machine strictly and production and installation is done by
professional workers.We test each production step for the best machine.

7) How about the price?
You know ,the goods counts the the price.We select the best machine raw material such as siemens electrics,schneider and ABB etc.We will provide you the best machine with best price.

8) How long is your machine’s guarantee time?
One year

9) What can you provide for after sale service?
We can send engineers to your factory for installation and training.also 24 hours on-line service for you.
