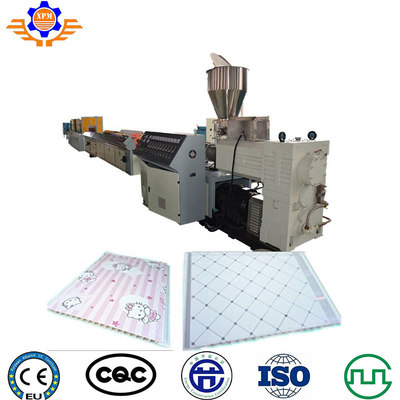

Decorative PVC Wall Panel Plastic Wall Cladding Sheet Machine Extrusion Line
|Contactor Brand||Siemens||Raw Material||PVC,WPC|
|Color||Customized||Screw||Conical Twin Screw|
|Voltage||220V,380V Or Customized||Application||Decorative Materials|
Wall Cladding Sheet PVC Extrusion Line,
Plastic Wall PVC Profile Extruder Machine,
150Kg/H Decorative Wall Panel Extruder
Decorative WPC PVC Foam Board Wall Panel Production Line, Plastic Wall Cladding Sheet Machine Extrusion Line
Machine name: Plastic PVC Wall Panel Making machine, Plastic PVC Ceiling Board Making Machine

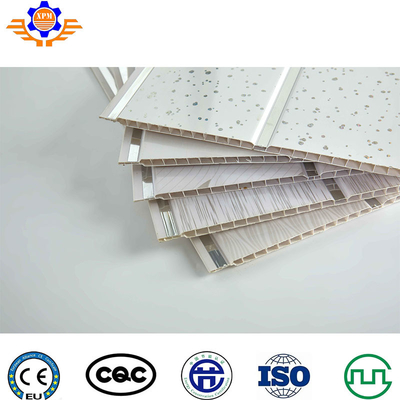

Finished product : Plastic Wall Panel , PVC composite ceiling , Plastic profile
High Intensity: service life of more than 30 years.
Waterproof & Rot Resistance: suitable for different climates, every occasion.
Quick & Easy Installation: saving labor and financial resources.
Easy to Clean: widely used in kitchens, living rooms, bathrooms,etc.(for ceiling and wall)
Variety of Colors and Patterns: different color and pattern can be made as required.
|Product Name||PVC panel , PVC ceiling , PVC wall panel , PVC board|
|Surface Treatment||Normal Printing , Transfer Printing , Laminated , Common glossy , High glossy|
|Width||180mm, 200mm, 250mm, 300mm, 400mm, 550mm, 600mm|
|Length||2m, 2.7m, 3m, 4m, 5.8m or customized|
|Weight||1.8, 1.9, 2.0, 2.1, 2.2, 2.3, 2.4, 2.5, 2.6, 2.7, 2.8, 2.9, 3.0, 3.2, 3.3, 3.4, 3.5, 3.6 kg/sqm|
|Main technical specifications of machines|
|Maximum panel width||300mm||400mm||600mm||Profiles|
|Extruder model||SJZ 55||SJZ 65||SJZ 65/SJZ80||SJZ 51|
|Production speed||120kg/h||220kg/h||220kg/h / 400kg/h||100kg/h|
|1||Spring loader for extruder||1|
|2||SJZ series conical twin screw extruder||1|
|3||Extrusion mould unit||1||Change mould for different shape|
|4||Vacuum calibration Table||1|
|5||Haul off unit||1|
|6||Lamination & hot stamping machine(inline)||1||Change film for different pattern|
|9||SRL-Z Series Mixer unit||1||Capacity : 450-550kg/h|
|10||Screw loader for Mixer||1|
Name: SJZ65/132 Conical twin screw extruder
a.Main motor :37kw Siemens Brand.
c.Screw barrel: 38CrMoAl, hardness Hv950 or more , high-efficiency and long service life.
d. Vacuum pump : Double station.
Name: Extrusion mould
a.special design for PVC profile
b.Mirror polishing Cr plating,
c.Three dimensional flow simulation software design.
Name: Calibration table with forming mould
a.Up and down, left and right manually adjusted
b.With Infrared device, guarantee speed synchronously with Haul-off speed.
Lamination & Hot Stamping Machine
Name: Lamination & hot stamping machine (in line)
a.It has two function: hot stamping and laminating
b.Working thickness and width can be adjusted
c.Equipped with foil tension force control system.
a.Cylinder control moving, non-dust cutting
b.With Photoelectricity device, guarantee cutting accurate
c.when lamination film or hot stamping film, each film pattern is accurate
d.PLC HMI operation
