PVC Ceiling Panel Production Line PVC Wall Panel Machine WPC Extrusion Machine

Place of Origin ZHANGJIAGANG,CHINA
Brand Name XPM
Certification CE,ISO
Model Number SJZ 55/65
Minimum Order Quantity 1 SET
Price 40,000-50,000 USD/SET
Packaging Details WOODEN CASE PACKING AND PLASTIC FILM
Delivery Time 45 WORKING DAYS
Payment Terms T/T
Supply Ability 20 SETS PER MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Contactor Brand Siemens Raw Material PVC,WPC
Color Customized Screw Conical Twin Screw
Warranty 1 Year Inverter ABB
Voltage 220V,380V Or Customized Application Decorative Materials
Output 150-320Kg/H Motor Power 37Kw
High Light

WPC PVC Ceiling Panel Production Line

,

Ceiling WPC Extrusion Machine

,

PVC Wall Panel Machine 320Kg/H

Leave a Message
Product Description

PVC Ceiling Panel Production Line PVC Wall Panel Machine WPC Extrusion Machine Manufacturer


Product Description
UPVC WPC PVC Panel Wall Panel Making Wood Plastic Composite Machine Profile Extrusion line 0
Machine name: Plastic PVC Wall Panel Making machine, Plastic PVC Ceiling Board Making Machine
Finished product : Plastic Wall Panel , PVC composite ceiling , Plastic profile
PVC Ceiling Panel Production Line PVC Wall Panel Machine WPC Extrusion Machine 1

Product advantages:

High Intensity: service life of more than 30 years.

Waterproof & Rot Resistance: suitable for different climates, every occasion.

Quick & Easy Installation: saving labor and financial resources.

Easy to Clean: widely used in kitchens, living rooms, bathrooms,etc.(for ceiling and wall)

Variety of Colors and Patterns: different color and pattern can be made as required.

Product Name PVC panel , PVC ceiling , PVC wall panel , PVC board
Surface Treatment Normal Printing , Transfer Printing , Laminated , Common glossy , High glossy
Thickness 5mm, 6mm,7mm,7.5mm,8mm,9mm,10mm,11mm,12mm
Width 180mm, 200mm, 250mm, 300mm, 400mm, 550mm, 600mm
Length 2m, 2.7m, 3m, 4m, 5.8m or customized
Weight 1.8, 1.9, 2.0, 2.1, 2.2, 2.3, 2.4, 2.5, 2.6, 2.7, 2.8, 2.9, 3.0, 3.2, 3.3, 3.4, 3.5, 3.6 kg/sqm

UPVC WPC PVC Panel Wall Panel Making Wood Plastic Composite Machine Profile Extrusion line 2

UPVC WPC PVC Panel Wall Panel Making Wood Plastic Composite Machine Profile Extrusion line 3
UPVC WPC PVC Panel Wall Panel Making Wood Plastic Composite Machine Profile Extrusion line 4

UPVC WPC PVC Panel Wall Panel Making Wood Plastic Composite Machine Profile Extrusion line 5
UPVC WPC PVC Panel Wall Panel Making Wood Plastic Composite Machine Profile Extrusion line 6

Main technical specifications of machines
Maximum panel width 300mm 400mm 600mm Profiles
Extruder model SJZ 55 SJZ 65 SJZ 65/SJZ80 SJZ 51
Extruder motor 22kw 37kw 37kw/55kw 15kw
Production speed 2m/min 4m/min 3m/min 2m/min
Production speed 120kg/h 220kg/h 220kg/h / 400kg/h 100kg/h



Machine List
No. Name Qty. Remark
1 Spring loader for extruder 1
2 SJZ series conical twin screw extruder 1
3 Extrusion mould unit 1 Change mould for different shape
4 Vacuum calibration Table 1
5 Haul off unit 1
6 Lamination & hot stamping machine(inline) 1 Change film for different pattern
7 Blade Cutter 1
8 Stacker 1



Auxiliary Machine
9 SRL-Z Series Mixer unit 1 Capacity : 450-550kg/h
10 Screw loader for Mixer 1
11 Crusher 1 Power: 11kw,22kw,30kw
12 Pulverizer 1 Power: 45kw,55kw,75kw


Detailed Images

UPVC WPC PVC Panel Wall Panel Making Wood Plastic Composite Machine Profile Extrusion line 7

Extrusion System

Name: SJZ65/132 Conical twin screw extruder
Technical parameters:
a.Main motor :37kw Siemens Brand.
b.Inverter:ABB
c.Screw barrel: 38CrMoAl, hardness Hv950 or more , high-efficiency and long service life.
d. Vacuum pump : Double station.
UPVC WPC PVC Panel Wall Panel Making Wood Plastic Composite Machine Profile Extrusion line 8

Mould Part

Name: Extrusion mould
Technical parameters:
a.special design for PVC profile
b.Mirror polishing Cr plating,
c.Three dimensional flow simulation software design.
UPVC WPC PVC Panel Wall Panel Making Wood Plastic Composite Machine Profile Extrusion line 9

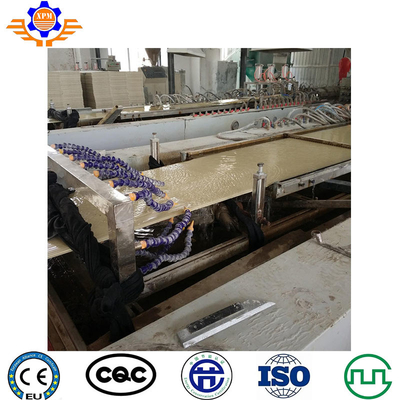

Calibration Table

Name: Calibration table with forming mould
Technical parameters:
a.Up and down, left and right manually adjusted
b.With Infrared device, guarantee speed synchronously with Haul-off speed.
UPVC WPC PVC Panel Wall Panel Making Wood Plastic Composite Machine Profile Extrusion line 10

Lamination & Hot Stamping Machine

Name: Lamination & hot stamping machine (in line)
Technical parameters:
a.It has two function: hot stamping and laminating
b.Working thickness and width can be adjusted
c.Equipped with foil tension force control system.
UPVC WPC PVC Panel Wall Panel Making Wood Plastic Composite Machine Profile Extrusion line 11

Blade Cutter

Name:Blade Cutter
Technical Parameters:
a.Cylinder control moving, non-dust cutting
b.With Photoelectricity device, guarantee cutting accurate
c.when lamination film or hot stamping film, each film pattern is accurate
d.PLC HMI operation


Company Profile

UPVC WPC PVC Panel Wall Panel Making Wood Plastic Composite Machine Profile Extrusion line 12
SAIJIA MACHINERY

Continously Innovating And Manufacuturing Of Plastic Machinery.ZHANGJIAGANG SAIJIA MACHINERY TECHNOLOGY CO.,LTD.Our main products are: plastic pipe extrusion line and plastic machine.The main products are popular exported to international market,including Russia,Australia, Southeast Asia,Middle East,East Europe.Africa and other countries.

ZHANGJIAGANG SAIJIA MACHINERY TECHNOLOGY CO.,LTD.
Zhangjiagang Saijia was established in 2000. The production experience is mature and rich. Among them, it has been exporting for more than 20 years, and more than 100 countries have exported. The annual export turnover is about 15 million US dollars. Our company's production base covers more than 50,000 square meters. , Modern office and production room more than 35,000 square meters, with experienced high-quality staff team, first-class equipment, perfect and effective quality assurance system, advanced and complete testing equipment.

Workshop
We know the quality is the life of our company. Our company insists to manufacture all machine units by ourselves in order to control quality strictly by our quality inspectors. To implement this concept, we have built our own tooling and CNC workshop. Even if some parts from our certified supplier, our quality inspector will check these parts before entering into our warehouse.
UPVC WPC PVC Panel Wall Panel Making Wood Plastic Composite Machine Profile Extrusion line 13
Warmly welcome to visit our workshop, and sincerely hope we can have long term cooperation in near future!

UPVC WPC PVC Panel Wall Panel Making Wood Plastic Composite Machine Profile Extrusion line 14
Certificates
International certification, verification certificates of equipment include:CE electrical certificate, CE mechanical certificate, ISO quality management certificate, Nigerian quality certificate etc.

UPVC WPC PVC Panel Wall Panel Making Wood Plastic Composite Machine Profile Extrusion line 15
FAQ
1) Are we manufacture or trade company?
We are manufacture,have 20 years' experiences in this field.
2) What kind machines we produce?
Our factory produce plastic pipes machines, plastic machine.
3) What kind payment we accept?
Payment term like T/T
4) How long we need to produce the machines?
According to different machine model and configuation, we need different time, like 40 days to 2 months.
5) Will the machine be delivered on time ?
Sure,we will deliver your machine up recieving the balance payment.
6) How about the machine quality?
Our machine quality is reliable.We select every parts on the machine strictly and production and installation is done by
professional workers.We test each production step for the best machine.
7) How about the price?
You know ,the goods counts the the price.We select the best machine raw material such as siemens electrics,schneider and ABB etc.We will provide you the best machine with best price.
8) How long is your machine’s guarantee time?
One year
9) What can you provide for after sale service?
We can send engineers to your factory for installation and training.also 24 hours on-line service for you.
