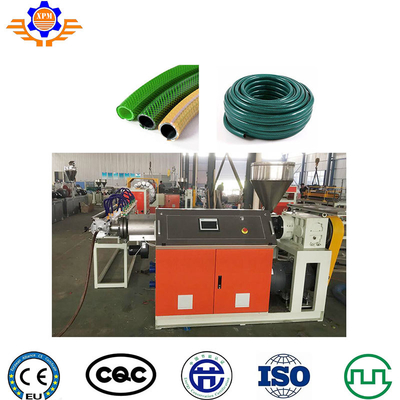

Soft PVC Pipe Processing Machines Water Garden Hose Fiber Reinforced Pipe Extrusion Line

Place of Origin ZHANGJIAGANG,CHINA
Brand Name XPM
Certification CE,ISO
Model Number SJSZ
Minimum Order Quantity 1 SET
Price 25,000-35,000 USD/SET
Packaging Details WOODEN CASE PACKING AND PLASTIC FILM
Delivery Time 45 WORKING DAYS
Payment Terms T/T
Supply Ability 20 SETS PER MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Contactor Brand Siemens Raw Material PE, PP, HDPE/PP,PVC
Color Customized Screw Conical Twin Screw
Warranty 1 Year Inverter ABB
Voltage 220V,380V Or Customized Application Pipe
Output 50-300Kg/H Motor Power 37Kw
High Light

PVC Fiber Reinforced Pipe Extrusion Line

,

Water Garden Hose Pipe Extrusion Line

,

ABB PVC Pipe Processing Machine

Leave a Message
Product Description

Soft PVC Pipe Processing Machines Water Garden Hose Pipe Machinery PVC Fiber Reinforced Pipe Extrusion Line

Product Details

PVC fiber reinforced soft pipe extrusion line

PVC fiber reinforced flexible hose is also called PVC network, commonly known as plastic flexible metal conduit.
The fiber strengthen hoses are widely used in agriculture, drainage systems, chemical industry, construction oil and many other industries. PVC braided hose is strong enough to withstand high pressure.It is light in weight than rubber hose and its smooth inner surface permits easy fluid flow.Its excellent transparency allow air locks,ensures detection of blockage in less time and hence saves costly down time.It is also useful for air, pneumatic, water and chemical applications.

Soft PVC Pipe Processing Machines Water Garden Hose Fiber Reinforced Pipe Extrusion Line 0



Main technology parameter :

Model Screw Dia. (mm) L : D Material Main power (kw) Total power (kw) Center height(mm) Pipe Dia.(mm)
SJ-45/55 45/55 30 38CrMnAl 7.5/11 35 1000 Ф6-Ф14
SJ-55/65 55/65 30 38CrMnAl 11/15 46 1000 Ф16-Ф38
SJ-75/90 75/90 30 38CrMnAl 18.5/37 80 1000 Ф50-Ф102





1. The inner and the outer layers will be made of PVC plastics and the middle layer is made of terylene fibre reinforced net.
2. Using famous servo driver, special close loop calculated solution best energy saving.
3. The efficiency is improved significantly.

Product Deatils Show

Soft PVC Pipe Processing Machines Water Garden Hose Fiber Reinforced Pipe Extrusion Line 1



Product Processing

Soft PVC Pipe Processing Machines Water Garden Hose Fiber Reinforced Pipe Extrusion Line 2

SJ65/28 Single Screw Plastic Extruder

Screw and Barrel Material 38CrMoAlA,Nitriding,
Nitride Layer Thickness:0.5~0.7mm,
Surface Rigidity:800~900HV



Contactor:SIEMENS
Relay: SIEMENS
Temperature control meter: RKC



Die

45# steel, forged,

chrome-plated surface



Water cooling bath

Made by stainless steel,

Up-and-down, Right-and-left adjustment, Adopt Manual Adjusting.

Length:2mm

Soft PVC Pipe Processing Machines Water Garden Hose Fiber Reinforced Pipe Extrusion Line 3

Braider

Motor power: 3kw

Motor speed control: Adopt 3kw AC inverter

Rotate speed: 25RPM



Oven

Electrical heating, heating power 4kw

Frame made of carbon steel
Oven made of stainless steel 304#



Soft PVC Pipe Processing Machines Water Garden Hose Fiber Reinforced Pipe Extrusion Line 4

Haul-off machine

Motor power: 1.5KW

Adopt 1.5kw ABB inverter



Winder

Semi-automatic,

Adopt torque motor
