Automated 37Kw Double Screw 20-50MM PVC Pipe Production Line Plastic Pipe Extruder
| Place of Origin | ZHANGJIAGANG,CHINA |
|---|---|
| Brand Name | XPM |
| Certification | CE,ISO |
| Model Number | 20-50MM |
| Minimum Order Quantity | 1 SET |
| Price | 20,000-25,000 USD/SET |
| Packaging Details | WOODEN CASE PACKING AND PLASTIC FILM |
| Delivery Time | 45 WORKING DAYS |
| Payment Terms | L/C, T/T |
| Supply Ability | 20 SETS PER MONTH |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Contactor Brand | Siemens | Raw Material | PVC |
|---|---|---|---|
| Color | Customized | Screw | Conical Twin Screw |
| Warranty | 1 Year | Inverter | ABB |
| Voltage | 220V,380V Or Customized | Application | Plastic Pipe |
| Output | 250Kg/H | Motor Power | 37Kw |
| High Light | Double Screw PVC Plastic Pipe Extruder,50MM PVC Pipe Production Line,Automated PVC Pipe Production Line 37Kw |
||
Product Description
Automated 37Kw Double Screw 20-50MM PVC Pipe Production Line Plastic Pipe Extruder
Description for PVC pipe extrusion line:
This production line composes a conical double-screw extruder, different pipe die heads and the relevant auxiliary machines. It is mainly used to produce PVC twin pipes which are used as electric thread-passing pipes and so on. With excellent extruding capacity, the production line can make small diameter pipes of high quality in excellent productivity. The whole set is easy and safe to operate.
With reasonable structure, stable and reliable performance, the production line can fulfill synchronic speed adjustment between the main motor of the extruder and that of the tractor. In addition, by way of vacuum sizing, the sizing effect is getting better and so does the automation of the device.

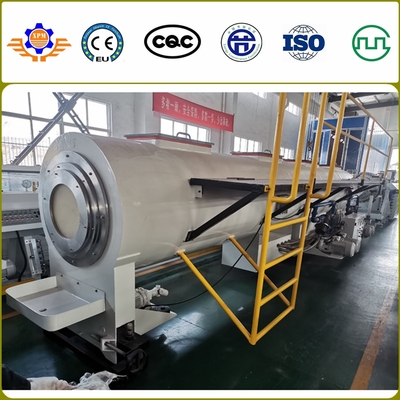

In PVC twin pipe production line, the vacuum sizing box of the auxiliary equipments consist of two stainless steel sizing boxes actually, which are 5 meters long and can be operated separately. Use automatic controller and motor to control the liquid level and movements respectively. The tractor adopts frequency conversion and the clamping is in a pneumatic way. The cutter is of automatic metering and cutting. Additionally, the stacking bracket can turn automatically.
According to requirements of different clients, the whole production line has desirable man and machine interface which adopts PLC controlling program.
SPECIFICATIONS:
| MODEL | PIPE DIAMETER (MM) | EXTRUDER MODEL | MOTOR POWER (KW) |
| XPM-32 | 16-32 (FOUR PIPE) | SJSZ65/132 | 37 AC |
| XPM-50A | 16-50 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| XPM-50B | 16-50 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| XPM-63 | 16-63 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
