16 - 110MM PVC Pipe Extrusion Line Plastic Pipe Making Machine

Brand Name XPM
Certification CE,ISO
Model Number 16-110MM
Minimum Order Quantity 1 SET
Price 30,000-40,000 USD/SET
Delivery Time 45 WORKING DAYS
Payment Terms L/C, T/T
Supply Ability 20 SETS PER MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Contactor Brand Siemens Raw Material PVC
Color Customized Screw Conical Twin Screw
Warranty 1 Year Inverter ABB
Voltage 220V,380V Or Customized Application Plastic Pipe
Output 250Kg/H Motor Power 37Kw
High Light

110mm Plastic PVC Pipe Extrusion Line


Multilayer Pvc Pipe Extrusion Line


380V Plastic Pipe Making Machine

Leave a Message
Product Description

63 To 110MM PVC Pipe Extrusion Line Plastic Pipe Making Machine

16 - 110MM PVC Pipe Extrusion Line Plastic Pipe Making Machine 0

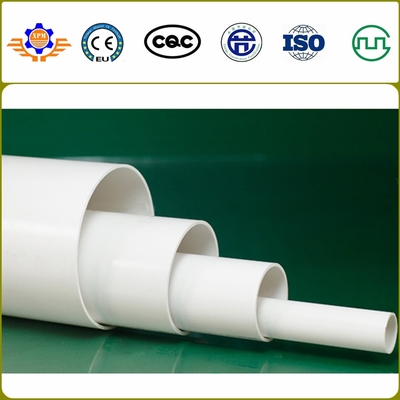

PVC Pipe.

1. It has good tensile and compressive strength: but its flexibility is not as good as other plastic pipes.

2. Low fluid resistance: The wall of PVC-U pipe is very smooth and has little resistance to fluid. Its roughness coefficient is only 0.009. Its water delivery capacity is 20% higher than that of cast iron pipes of the same pipe diameter and 40% higher than that of concrete pipes.

3. Excellent corrosion resistance and chemical resistance: PVC-U pipes have excellent acid resistance, alkali resistance, and corrosion resistance, and are not affected by damp water and soil pH. No anti-corrosion treatment is required when laying pipelines.

4. Anti-bite: PVC-U tube is not a source of nutrition, so it will not be corroded by rodents. According to a test conducted by the National Sanitation Foundation in Michigan, rats will not bite PVC-U pipes.

5. It has good water tightness: the installation of PVC-U pipes, regardless of whether it is connected by bonding or rubber ring, has good water tightness.

6. Performance test: curing time, shrinkage, splitting strength, tensile performance, peeling strength, thermal stability, pot life, storage period, release of harmful substances.

16 - 110MM PVC Pipe Extrusion Line Plastic Pipe Making Machine 1

If you want to know more about Plastic Pipe Extrusion Line, inquiry us now!


16 - 110MM PVC Pipe Extrusion Line Plastic Pipe Making Machine 2

PVC Pipe Extrusion Line.

Our company has full range of PVC pipe extrusion line, including four cavity pipe extrusion line, double cavity pipe extrusion line and large diameter pipe extrusion line. Our company will also provide basic formula for PVC pipe production, customer can adjust easily based on the formula. We manufacture machines for production of different PVC pipes, including U-PVC, C-PVC, M-PVC, PVC-O pipes, etc.

Our PVC pipe extrusion line can produce from size of minimum 16mm to 1000mm with single layer or multi-layer.

16 - 110MM PVC Pipe Extrusion Line Plastic Pipe Making Machine 3

Product Paramenters

Model Pipe Range (mm) Output Capacity (kg/h) Main Motor Power (kw)
PVC32SS* 16 - 32 (×4) 180 - 250 22 - 37
PVC63 16 - 63 180 - 250 22 - 37
PVC63SS* 16 - 63 (×2) 250 37
PVC110 20 - 110 250 37
PVC160 50 - 160 250 37
PVC250 75 - 250 450 55
PVC450 110 - 450 450 - 800 55 - 110
PVC630 250 - 630 800 110
PVC800 315 - 800 1000 132
PVC1000 400 - 1000 1200 160
S* means double-strand/cavity, two pipes produced at same time.
SS* means four-strand/cavity, four pipes produced at same time.
Production Line Parameter (for reference only, can be customized)


16 - 110MM PVC Pipe Extrusion Line Plastic Pipe Making Machine 4


16 - 110MM PVC Pipe Extrusion Line Plastic Pipe Making Machine 5


We know the quality is the life of our company. Our company insists to manufacture all machine units by ourselves in order to control quality strictly by our quality inspectors. To implement this concept, we have built our own tooling and CNC workshop. Even if some parts from our certified supplier, our quality inspector will check these parts before entering into our warehouse.

Warmly welcome to visit our workshop, and sincerely hope we can have long term cooperation in near future!

16 - 110MM PVC Pipe Extrusion Line Plastic Pipe Making Machine 6


International certification, verification certificates of equipment include:CE electrical certificate, CE mechanical certificate, ISO quality management certificate, Nigerian quality certificate etc.

16 - 110MM PVC Pipe Extrusion Line Plastic Pipe Making Machine 7


1) Are we manufacture or trade company?
We are manufacture,have 20 years' experiences in this field.

2) What kind machines we produce?
Our factory produce plastic pipes machines, plastic machine.

3) What kind payment we accept?
Payment term like T/T.

4) How long we need to produce the machines?
According to different machine model and configuation, we need different time, like 40 days to 2 months.

5) Will the machine be delivered on time ?
Sure,we will deliver your machine up recieving the balance payment.

6) How about the machine quality?
Our machine quality is reliable.We select every parts on the machine strictly and production and installation is done by
professional workers.We test each production step for the best machine.

7) How about the price?
You know ,the goods counts the the price.We select the best machine raw material such as siemens electrics,schneider and ABB etc.We will provide you the best machine with best price.

8) How long is your machine’s guarantee time?
One year

9) What can you provide for after sale service?
We can send engineers to your factory for installation and training.also 24 hours on-line service for you.
