180 - 1200Kg/H Twin Screw PP PPR PE PVC Corrugated Pipe Making Machine Production Line

Place of Origin ZHANGJIAGANG,CHINA
Brand Name XPM
Certification CE,ISO
Model Number 12-63MM
Minimum Order Quantity 1 SET
Price 20,000-30,000 USD/SET
Packaging Details WOODEN CASE PACKING AND PLASTIC FILM
Delivery Time 45 WORKING DAYS
Payment Terms L/C, T/T
Supply Ability 20 SETS PER MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Contactor Brand Siemens Raw Material PVC
Color Customized Screw Conical Twin Screw
Warranty 1 Year Inverter ABB
Voltage 220V,380V Or Customized Application Plastic Pipe
Output 180-1200Kg/H Motor Power 22-160Kw
High Light

Twin Screw Ppr Pipe Extrusion Line

,

PVC Corrugated Pipe Making Machine 160Kw

,

380V Pe Pipe Production Line

Leave a Message
Product Description

180-1200Kg/H Twin Screw PP PPR PE PVC Corrugated Pipe Making Machine Production Line



Product Description

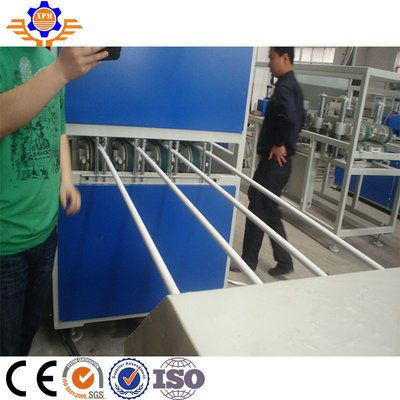

180 - 1200Kg/H Twin Screw PP PPR PE PVC Corrugated Pipe Making Machine Production Line 0

SaiJia Single-Wall Corrugated Pipe Extrusion Line

Used for producing wires and cable passing pipes , washing machine drain pipes , dust collector pipes and ventiducts .

Main Technical Parameters
Model XPM 25 XPM 32 XPM 63
Die Block(Couple) 44 44 44
Pipe Diameter Range(mm) 8-25 16-32 20-63
Production Speed(m/min) 4-10 2-7 1-6
Output(kg/h) 8 30 60

Would like to know more details , feel free to send us inquiry !

180 - 1200Kg/H Twin Screw PP PPR PE PVC Corrugated Pipe Making Machine Production Line 1



PE PP PVC Spiral Corrugated Pipe Making Machine

Main uses of plastic corrugated pipe: single-wall corrugated pipe are mainly used for machine tool machinery and cabinet control cabinet wiring connection, such as instrumentation, control cabinet, equipment manufacturing, engineering installation, train, automobile, subway, machine tool machinery, automation control and other industries. Double-wall corrugated pipe is mainly used for drainage pipe of municipal construction and mine seepage pipe.

The corrugated pipe machine produced by our company mainly adopt German push-block structure. The production speed of plastic single-wall bellows can reach 15-30 m/min and 110 double-wall bellows can reach 4-6 m/min.



180 - 1200Kg/H Twin Screw PP PPR PE PVC Corrugated Pipe Making Machine Production Line 2

Single Screw Extruder

High production capacity of extrusion on the high quality basis. Lower temperature plasticizing design, ensure high quality PIPE extrusion.

Material of screw and barrel: 38CrMoAlA, nitrogen quenched (0.4-0.7mm ), Rigidity of screw: >740 , Rigidity of barel >940, the surface of screw is chromeplated Feeding bush with water cooling system

Extrusion Die

Material :40Cr , the surface of die is chromeplated, anti-corrosive

High Speed Forming Machine

Gear driven system with high precision modules and tracks. The track is water cooling system, it could meets 10-30m/min working speed.It is added water cooling and fan cooling two system.

Moulds Block

Materials of moulds block:40CrThe moulds are made by CNC system, it is high precison and long service life.
It could be designed into one hole or two hole according customer request.
We could print customers logo into moulds according request.

Automatic coiler

No of wheel: two wheel or one wheel according customer requestUseing delta inverter system, it is automatic adjustment of winding speed.

Control Box

Temperature controller: OMRON

Contactor and replay: SIEMENS

Inverter: ABB or Delta Character

High precise temperature control. Configurable alarm strategy.

All of the production data can be displayed electrical panel.

Very easy operation.

Running stability



ZHANGJIAGANG SAIJIA MACHINERY TECHNOLOGY CO.,LTD.specializing in the production of HDPE PP PVC PA single wall corrugated pipe machine, double-wall corrugated pipe production line,Equipment operation is stable, automatic production, saving labor, efficient extrusion.



180 - 1200Kg/H Twin Screw PP PPR PE PVC Corrugated Pipe Making Machine Production Line 3

FAQ

Q.1.ARE YOU A MANUFACTURER OR TRADING COMPANY?

● SaiJia is a manufacturer who is registered in the Chinese Business Administration and has the right to operate and sell it legally.
● SaiJia cooperates with Ecer who will supply you a lot of service to protect you .
● SaiJia has a professional engineer team who all have more than 20 years experience in plastic pipe extrusion line and plastic machinee manufacturing .

Q.2.HOW TO VISIT OUR FACTORY?

● If you are interested in our products, you may visit our factory at any time , we can pick you up from the station(Wuxi East Railway Station) or the airport near our city .
● Seeing is believing , you can see our machine quality after your visit .

Q.3.HOW TO ENSURE THE MACHINE QUALITY?

● In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have accumulated professional processing methods over the past years.
● Each component before assembly needs strictly control by inspecting personnel.
● Before shipping, the whole machine will be commissioned in our factory to make sure it can run well in your factory.

Q.4.HOW TO GUARANTEE YOUR FUNDS?

● We go through bank letter of credit service, which can protect your funds to be safe.
● We will send you pictures of the machine every week to ensure the delivery.

Q.5.SAIJIA AFTER-SALE SERVICE

● We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly
● When you finish the preparation conditions,our fast and professional after service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.
● We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.
● We provide 1 year warranty with spare parts free and life-long technical support .
