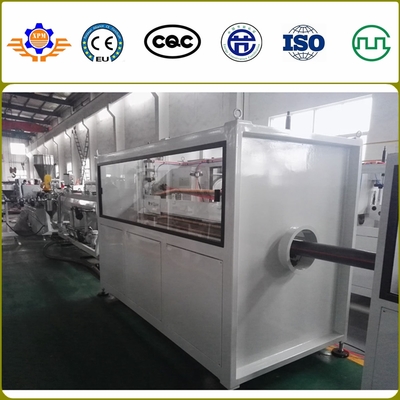

110 - 250MM 250 - 450Kg/H Twin Screw Pvc Pipe Machine Line Plastic Water Pipe Making Machine
|Contactor Brand||Siemens||Raw Material||PVC|
|Color||Customized||Screw||Conical Twin Screw|
|Voltage||220V,380V Or Customized||Application||Plastic Pipe|
Pvc Water Pipe Twin Screw Extruder,
Twin Screw Pvc Pipe Machine 250MM,
Plastic Water Pipe Making Machine 110mm
110 To 250MM 250-450Kg/H Twin Screw Pvc Pipe Machine Line Plastic Water Pipe Making Machine
1. It has good tensile and compressive strength: but its flexibility is not as good as other plastic pipes.
2. Low fluid resistance: The wall of PVC-U pipe is very smooth and has little resistance to fluid. Its roughness coefficient is only 0.009. Its water delivery capacity is 20% higher than that of cast iron pipes of the same pipe diameter and 40% higher than that of concrete pipes.
3. Excellent corrosion resistance and chemical resistance: PVC-U pipes have excellent acid resistance, alkali resistance, and corrosion resistance, and are not affected by damp water and soil pH. No anti-corrosion treatment is required when laying pipelines.
4. Anti-bite: PVC-U tube is not a source of nutrition, so it will not be corroded by rodents. According to a test conducted by the National Sanitation Foundation in Michigan, rats will not bite PVC-U pipes.
5. It has good water tightness: the installation of PVC-U pipes, regardless of whether it is connected by bonding or rubber ring, has good water tightness.
6. Performance test: curing time, shrinkage, splitting strength, tensile performance, peeling strength, thermal stability, pot life, storage period, release of harmful substances.
If you want to know more about Plastic Pipe Extrusion Line, inquiry us now!
PVC Pipe Extrusion Line.
Our company has full range of PVC pipe extrusion line, including four cavity pipe extrusion line, double cavity pipe extrusion line and large diameter pipe extrusion line. Our company will also provide basic formula for PVC pipe production, customer can adjust easily based on the formula. We manufacture machines for production of different PVC pipes, including U-PVC, C-PVC, M-PVC, PVC-O pipes, etc.
Our PVC pipe extrusion line can produce from size of minimum 16mm to 1000mm with single layer or multi-layer.
|Model||Pipe Range (mm)||Output Capacity (kg/h)||Main Motor Power (kw)|
|PVC32SS*||16 - 32 (×4)||180 - 250||22 - 37|
|PVC63||16 - 63||180 - 250||22 - 37|
|PVC63SS*||16 - 63 (×2)||250||37|
|PVC110||20 - 110||250||37|
|PVC160||50 - 160||250||37|
|PVC250||75 - 250||450||55|
|PVC450||110 - 450||450 - 800||55 - 110|
|PVC630||250 - 630||800||110|
|PVC800||315 - 800||1000||132|
|PVC1000||400 - 1000||1200||160|
|S* means double-strand/cavity, two pipes produced at same time.
SS* means four-strand/cavity, four pipes produced at same time.
|Production Line Parameter (for reference only, can be customized)|
ZHANGJIAGANG SAIJIA MACHINERY TECHNOLOGY CO.,LTD.
Zhangjiagang Saijia was established in 2000. The production experience is mature and rich. Among them, it has been exporting for more than 20 years, and more than 100 countries have exported. The annual export turnover is about 15 million US dollars. Our company's production base covers more than 50,000 square meters. , Modern office and production room more than 35,000 square meters, with experienced high-quality staff team, first-class equipment, perfect and effective quality assurance system, advanced and complete testing equipment.
We know the quality is the life of our company. Our company insists to manufacture all machine units by ourselves in order to control quality strictly by our quality inspectors. To implement this concept, we have built our own tooling and CNC workshop. Even if some parts from our certified supplier, our quality inspector will check these parts before entering into our warehouse.
Warmly welcome to visit our workshop, and sincerely hope we can have long term cooperation in near future!
International certification, verification certificates of equipment include:CE electrical certificate, CE mechanical certificate, ISO quality management certificate, Nigerian quality certificate etc.
