220Kg/H Plastic PVC Profile Extrusion Line For Wall Ceiling Corner Tile Making Machine
| Place of Origin | ZHANGJIAGANG,CHINA |
|---|---|
| Brand Name | XPM |
| Certification | CE,ISO |
| Model Number | XDXC180/240/300/400/500 |
| Minimum Order Quantity | 1 SET |
| Price | 40,000-50,000 USD/SET |
| Packaging Details | WOODEN CASE PACKING AND PLASTIC FILM |
| Delivery Time | 45 WORKING DAYS |
| Payment Terms | T/T |
| Supply Ability | 20 SETS PER MONTH |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Contactor Brand | Siemens | Raw Material | PVC |
|---|---|---|---|
| Color | Customized | Screw | Conical Twin Screw |
| Warranty | 1 Year | Inverter | ABB |
| Voltage | 220V,380V Or Customized | Application | Plastic Pipe |
| Output | 150-320Kg/H | Motor Power | 37-110Kw |
| High Light | PVC Ceiling Corner Tile Making Machine,220Kg/H Plastic PVC Profile Extrusion Line,Conical Twin Screw Profile Extrusion Line |
||
Product Description
220Kg/h Plastic PVC Profile Extrusion Line For Wall Ceiling Corner Tile Making Machine
Description of PVC Ceiling Corner Tile Making Machine:

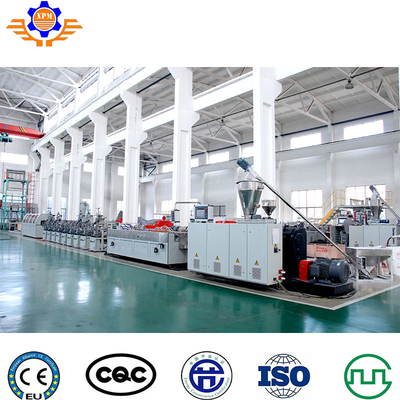

PVC Corners Production Line consists of twin-screw extruder, vacuum stereotypes table, haul-off machine, punching machine, cutter and stacker. It can be one out of four or one out of six, high output and achieve online punching, which saving time and effort and easy to operate.
Process Flow of PVC Ceiling Corner Tile Making Machine:
Raw material +wood power+ additive → mixing → granulating → conical twin-screw extruder → profile extrusion mould → cool molding die → vacuum calibration support → belt haul-off → cutter → rack → finished product inspecting & packing
Raw materials for PVC Corner :
PVC + calcium + other additives.
PVC high chemical stability,panels can be used for a long time.
| Feeder | • To feed material into extruder; |
| Extruder | •World famous brand electrical component: Siemens,Schneider, ABB etc; • High torque gearbox with adopts NSK/SKF bearing; • Siemens/WEG original motor achieved global after service; • Bimetallic screw and barrel; • Intelligent PLC controlling system with human-friendly interface. |
| Die head | • 3Cr13/3Cr17 material • Complete set include extrusion die head, calibrator and cooling tank • Adopt to single, co-extrusion, foam imitation marble profile |
| calibration table | • Include full set of vacuum and water pump • Width: 240mm • Length: 6000mm • Independent operation panel for easy operation |
| Haul off | • Upper/lower caterpillar driven separately and speed control by inverter • Fast change type pads for easy operation • Install plate is adopts aluminum material |
| Cutter | • Lifting saw cutter with adopts double station dust collection system •Synchronous drivingby air cylinder or servo motor control |
| Stacker | • Stainless steel304 as touching material • Discharge driving by air cylinder |
| Hot stamping machine | • Decorative pattern and film protection of product surface |
Technical information:
| Parts | No. | Name | Brand |
| 1 Screw and barrel | 1 | Design | German design |
| 2 | Main materials | 38CrMoALA | |
| 3 | Screw heating | Silicon oil heating | |
| 4 | Barrel heater | Cast aluminum heater | |
| 5 | Barrel has vacuum exhausting system | ||
| 2 Driving parts | 1 | Main motor | Siemens Brand |
| 2 | Gear box | Top brand in China | |
| 3 Electric parts | 1 | Inverter | ABB brand |
| 2 | Contactor | Schneider brand | |
| 3 | Relay | Schneider brand | |
| 4 | Breaker | Delixi brand | |
| 5 | Temperature meter | RKC brand | |
| 6 | Hauling motor | Densen brand | |
| 7 | Hauling gear box | Hard surface gear box | |
| 8 | Vacuum pump | Yvhuang brand | |
| 9 | Water pump | Yvhuang brand | |
| 10 | Cutting motor | Siemens brand | |
| 11 | PLC | Schneider brand | |
| 4 Mechanical parts | We use CNC machines to ensure the precision of our mechanical parts | ||
| 5 Protection system | We have a whole set of protection system for our machines, such as: 1 Current overload protection 2 Torque overload protection 3 Oil path blocking alarm 4 Vacuum overload alarm, and so on. |
||
| For more technical information please contact us by email. | |||
