150-320Kg/H Wood Plastic Composite PVC WPC Fluted Wall Panel Board Extrusion Machine Line
Machine name: Plastic PVC Wall Panel Making machine, Plastic PVC Ceiling Board Making Machine

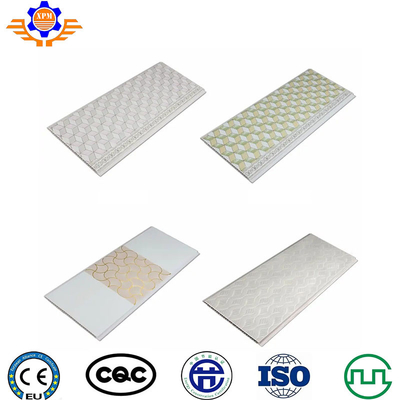

Finished product : Plastic Wall Panel , PVC composite ceiling , Plastic profile
High Intensity: service life of more than 30 years.
Waterproof & Rot Resistance: suitable for different climates, every occasion.
Quick & Easy Installation: saving labor and financial resources.
Easy to Clean: widely used in kitchens, living rooms, bathrooms,etc.(for ceiling and wall)
Variety of Colors and Patterns: different color and pattern can be made as required.
||PVC panel , PVC ceiling , PVC wall panel , PVC board
||Normal Printing , Transfer Printing , Laminated , Common glossy , High glossy
||180mm, 200mm, 250mm, 300mm, 400mm, 550mm, 600mm
||2m, 2.7m, 3m, 4m, 5.8m or customized
||1.8, 1.9, 2.0, 2.1, 2.2, 2.3, 2.4, 2.5, 2.6, 2.7, 2.8, 2.9, 3.0, 3.2, 3.3, 3.4, 3.5, 3.6 kg/sqm
|Main technical specifications of machines
|Maximum panel width
||220kg/h / 400kg/h
||Spring loader for extruder
||SJZ series conical twin screw extruder
||Extrusion mould unit
||Change mould for different shape
||Vacuum calibration Table
||Haul off unit
||Lamination & hot stamping machine(inline)
||Change film for different pattern
||SRL-Z Series Mixer unit
||Capacity : 450-550kg/h
||Screw loader for Mixer
Name: SJZ65/132 Conical twin screw extruder
a.Main motor :37kw Siemens Brand.
c.Screw barrel: 38CrMoAl, hardness Hv950 or more , high-efficiency and long service life.
d. Vacuum pump : Double station.
Name: Extrusion mould
a.special design for PVC profile
b.Mirror polishing Cr plating,
c.Three dimensional flow simulation software design.
Name: Calibration table with forming mould
a.Up and down, left and right manually adjusted
b.With Infrared device, guarantee speed synchronously with Haul-off speed.
Lamination & Hot Stamping Machine
Name: Lamination & hot stamping machine (in line)
a.It has two function: hot stamping and laminating
b.Working thickness and width can be adjusted
c.Equipped with foil tension force control system.
a.Cylinder control moving, non-dust cutting
b.With Photoelectricity device, guarantee cutting accurate
c.when lamination film or hot stamping film, each film pattern is accurate
d.PLC HMI operation
Continously Innovating And Manufacuturing Of Plastic Machinery.ZHANGJIAGANG SAIJIA MACHINERY TECHNOLOGY CO.,LTD.Our main products are: plastic pipe extrusion line and plastic machine.The main products are popular exported to international market,including Russia,Australia, Southeast Asia,Middle East,East Europe.Africa and other countries.
ZHANGJIAGANG SAIJIA MACHINERY TECHNOLOGY CO.,LTD.
Zhangjiagang Saijia was established in 2000. The production experience is mature and rich. Among them, it has been exporting for more than 20 years, and more than 100 countries have exported. The annual export turnover is about 15 million US dollars. Our company's production base covers more than 50,000 square meters. , Modern office and production room more than 35,000 square meters, with experienced high-quality staff team, first-class equipment, perfect and effective quality assurance system, advanced and complete testing equipment.
We know the quality is the life of our company. Our company insists to manufacture all machine units by ourselves in order to control quality strictly by our quality inspectors. To implement this concept, we have built our own tooling and CNC workshop. Even if some parts from our certified supplier, our quality inspector will check these parts before entering into our warehouse.
Warmly welcome to visit our workshop, and sincerely hope we can have long term cooperation in near future!
International certification, verification certificates of equipment include:CE electrical certificate, CE mechanical certificate, ISO quality management certificate, Nigerian quality certificate etc.
1) Are we manufacture or trade company?
We are manufacture,have 20 years' experiences in this field.
2) What kind machines we produce?
Our factory produce plastic pipes machines, plastic machine.
3) What kind payment we accept?
Payment term like T/T
4) How long we need to produce the machines?
According to different machine model and configuation, we need different time, like 40 days to 2 months.
5) Will the machine be delivered on time ?
Sure,we will deliver your machine up recieving the balance payment.
6) How about the machine quality?
Our machine quality is reliable.We select every parts on the machine strictly and production and installation is done by
professional workers.We test each production step for the best machine.
7) How about the price?
You know ,the goods counts the the price.We select the best machine raw material such as siemens electrics,schneider and ABB etc.We will provide you the best machine with best price.
8) How long is your machine’s guarantee time?
9) What can you provide for after sale service?
We can send engineers to your factory for installation and training.also 24 hours on-line service for you.
