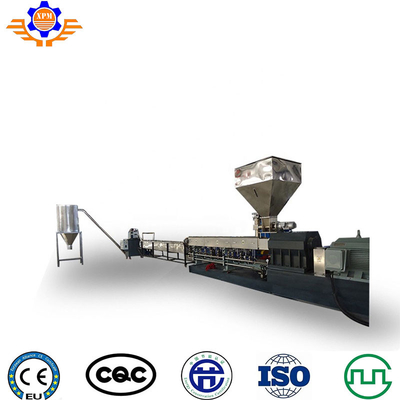

120kg/H Nylon PP PE PVC Granules Making PVC PET Fully Automatic Plastic Granules Machine

Place of Origin ZHANGJIAGANG,CHINA
Brand Name XPM
Certification CE,ISO
Model Number SJSZ
Minimum Order Quantity 1 SET
Price 20,000-40,000 USD/SET
Packaging Details WOODEN CASE PACKING AND PLASTIC FILM
Delivery Time 45 WORKING DAYS
Payment Terms T/T
Supply Ability 20 SETS PER MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Contactor Brand Siemens Raw Material PE/PP/PET/PVC
Color Customized Screw Conical Twin Screw
Warranty 1 Year Inverter ABB
Voltage 220V,380V Or Customized Application Granules
Output 60-300Kg/H Motor Power 37Kw
High Light

120kg/h fully automatic plastic granules machine

,

PE fuly automatic plastic granules machine

,

37Kw pvc granules making machine

Leave a Message
Product Description

PVC PET Nylon PP PE Pelletizing Recycling Machine Plastic Granulating Production Line

Braces particle cutting machine is mainly used in PET, PVC and other high viscosity materials.
The machine can reduce less loss of the viscosity of the raw material. Compared to water-ring cutting, it is not easy to break the article or adhesion.The granules that the Braces particle cutting machine produce are much more uniform and beautiful.

120kg/H Nylon PP PE PVC Granules Making PVC PET Fully Automatic Plastic Granules Machine 0

General Description

1.Feeding Machine

This machine can be used with all kinds of extruders. It can carry plastic are cleaned into the hopper of Extruder automatic.It can save your labour,ande realize the effect of safety and reliability.

2.Extruder

This machine is used to extrude plastic cleaned by high temperature.The extrusion line can be consisted by such accessory machine:main motor, the gear box, the distribution box, the barrel and screw, the dies, vacuum calibration tank. Main Motor is mainly to supply the power. The Gear box transfers the motor to power.The distribution box enlarges the strength of the power and realizes uniformity.Double screws can make low viscosity index consume of raw material and improve production.It also has a Cooling tank making the heat of screw be appropriate.

3.Mould

We use plug board type to change nets and keep machine working.The mould is made by 40Cr nitridation .The pressure sensor prompts to change the nets.There also can install a hydraulic equipment to change the nets more quickly.

4.Water Channel

The water channel is 4 meters long.Make out article of cooling

5.Winds drying machine

Through the double channels strong wind dryer,force drying and cooling article material reach the fast speed effect of shaping up.

6.Pelletizer machine

It adopts grain design, accracy is high and can guarantee the rotatory precision and stationery of power, movements of cylinder are controlled by the solenoid valve, the automatic degree is highand the noise is low.

Technical Parameters

Screw Dia.(mm) Φ65mm Φ90mm Φ120mm Φ150mm
L/D 25-30:1 25-30:1 25-30:1 25-30:1
Screw rotation (r/min) 50-80 50-80 50-80 50-80
Main power(KW) 15 22 30 45
Output (kg/h) 60-80 100-120 150-200 200-300



Machine Details

120kg/H Nylon PP PE PVC Granules Making PVC PET Fully Automatic Plastic Granules Machine 1120kg/H Nylon PP PE PVC Granules Making PVC PET Fully Automatic Plastic Granules Machine 2







Company Profile

120kg/H Nylon PP PE PVC Granules Making PVC PET Fully Automatic Plastic Granules Machine 3

SAIJIA MACHINERY

Continously Innovating And Manufacuturing Of Plastic Machinery.ZHANGJIAGANG SAIJIA MACHINERY TECHNOLOGY CO.,LTD.Our main products are: plastic pipe extrusion line and plastic machine.The main products are popular exported to international market,including Russia,Australia, Southeast Asia,Middle East,East Europe.Africa and other countries.



ZHANGJIAGANG SAIJIA MACHINERY TECHNOLOGY CO.,LTD.

Zhangjiagang Saijia was established in 2000. The production experience is mature and rich. Among them, it has been exporting for more than 20 years, and more than 100 countries have exported. The annual export turnover is about 15 million US dollars. Our company's production base covers more than 50,000 square meters. , Modern office and production room more than 35,000 square meters, with experienced high-quality staff team, first-class equipment, perfect and effective quality assurance system, advanced and complete testing equipment.



Workshop

We know the quality is the life of our company. Our company insists to manufacture all machine units by ourselves in order to control quality strictly by our quality inspectors. To implement this concept, we have built our own tooling and CNC workshop. Even if some parts from our certified supplier, our quality inspector will check these parts before entering into our warehouse.

120kg/H Nylon PP PE PVC Granules Making PVC PET Fully Automatic Plastic Granules Machine 4
Warmly welcome to visit our workshop, and sincerely hope we can have long term cooperation in near future!



120kg/H Nylon PP PE PVC Granules Making PVC PET Fully Automatic Plastic Granules Machine 5

Certificates

International certification, verification certificates of equipment include:CE electrical certificate, CE mechanical certificate, ISO quality management certificate, Nigerian quality certificate etc.



120kg/H Nylon PP PE PVC Granules Making PVC PET Fully Automatic Plastic Granules Machine 6

FAQ

1) Are we manufacture or trade company?
We are manufacture,have 20 years' experiences in this field.

2) What kind machines we produce?
Our factory produce plastic pipes machines, plastic machine.

3) What kind payment we accept?
Payment term like T/T

4) How long we need to produce the machines?
According to different machine model and configuation, we need different time, like 40 days to 2 months.

5) Will the machine be delivered on time ?
Sure,we will deliver your machine up recieving the balance payment.

6) How about the machine quality?
Our machine quality is reliable.We select every parts on the machine strictly and production and installation is done by
professional workers.We test each production step for the best machine.

7) How about the price?
You know ,the goods counts the the price.We select the best machine raw material such as siemens electrics,schneider and ABB etc.We will provide you the best machine with best price.

8) How long is your machine’s guarantee time?
One year

9) What can you provide for after sale service?
We can send engineers to your factory for installation and training.also 24 hours on-line service for you.
