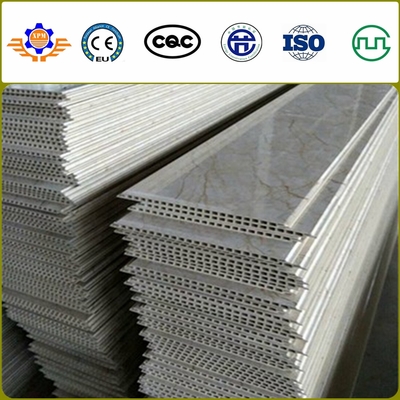

250 - 600mm Width Pvc Ceiling Panel Production Line Pvc Ceiling Making Machine Home Decoration

Place of Origin ZHANGJIAGANG,CHINA
Brand Name XPM
Certification CE,ISO
Model Number SJSZ65/132
Minimum Order Quantity 1 SET
Price 40,000-50,000 USD/SET
Packaging Details WOODEN CASE PACKING AND PLASTIC FILM
Delivery Time 45 WORKING DAYS
Payment Terms T/T
Supply Ability 20 SETS PER MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Contactor Brand Siemens Raw Material PVC
Color Customized Screw Conical Twin Screw
Warranty 1 Year Inverter ABB
Voltage 380V Or Customized Application Decorative Materials
Output 150-250Kg/H Motor Power 37Kw
High Light

Pvc Ceiling Panel Production Line 250mm

,

380V Pvc Panel Extrusion Line

,

Pvc Ceiling Making Machine Twin Screw

Leave a Message
Product Description

PVC Ceiling Panel Board Building Decoration Materials Extrusion Machine New PVC Sheet Extrusion Line

Product Description:

General Description of PLASTIC PROFILE PRODUCTION LINE/PLASTIC PVC PROFILE EXTRUDER/EXTRUDING LINE/EXTRUSION MACHINERY/MAKING MACHINERY



1. Plastic ceiling panle production line is using PVC material and it is applied to produce PVC window door frame profile,PVC ceiling panel profile,PVC cable trunking profile by changing different mould.

2.This production is composed of conical twin-screw extruder,mould,vacuum calibration table, haul-off, cutter and stacker.



Production Flow of PLASTIC PROFILE PRODUCTION LINE/PLASTIC PVC PROFILE EXTRUDER/EXTRUDING LINE/EXTRUSION MACHINERY/MAKING MACHINERY



PVC powder + additives → Mixer → Screw feeder → Extruder → Mould → Vacuum forming table→ Haul-off machine→ Cutting machine → Stacker

250 - 600mm Width Pvc Ceiling Panel Production Line Pvc Ceiling Making Machine Home Decoration 0

Main Technical Parameter of PLASTIC PROFILE PRODUCTION LINE/PLASTIC PVC PROFILE EXTRUDER/EXTRUDING LINE/EXTRUSION MACHINERY/MAKING MACHINERY

Model XPM120 XPM180 XPM240 XPM300 XPM600
Product max size (mm) 120x50mm 180x50 mm 240x100 mm 300x120 mm 550x120 mm
Extruder SJSZ45/90 SJSZ51/105 SJSZ65/132 SJSZ65/132 SJSZ80/156

Capacity

(kg/h)

120 150 250 250 380

Machine Length

(m)

18 20 24 24 28



250 - 600mm Width Pvc Ceiling Panel Production Line Pvc Ceiling Making Machine Home Decoration 1

Main Machine List of PLASTIC PROFILE PRODUCTION LINE/PLASTIC PVC PROFILE EXTRUDER/EXTRUDING LINE/EXTRUSION MACHINERY/MAKING MACHINERY

No Machine Name

Q'ty



1

SJSZ series conical twin screw extruder

(Equipped with automatic feeding unit)

1 set
2 Profile Extrusion Mould 1 set
3 Vacuum calibration table 1 set
4 Hauling-off machine 1 set
5 Cutting machine 1 set
6 Stacker 1 set
Optional Auxiliary machines
1 SHRL series material mixing machine 1 set
2 Crushing machine 1 set
3 Milling machine 1 set



We offer a wide range of calibration tables, providing an optimal and tailor-made solution for every need and application.

Features

Motor-driven height and side movement

Motor-driven longitudinal movement

Manuel tilting movement

All parts which contact with water, are made of stainless steel

Low maintenance cost

Product Range

Table length from 4,5 to 14 mt

Vacuum pumps can be added upon request

Focusing on the energy saving system, Lima Extrusion provides LESS (Lima Energy Saving System) to benefit vacuum energy savings up to 80%.

Features

Vacuum energy savings up to 80%

Vacuum pumps are driven by individual frequency

Inverters in order to use them according to the real need

Low noise level

Closed circuit to save as much water as possible during the extrusion process

Product Range

Table length from 4,5 to 14 mt

Vacuum pumps can be added upon request

250 - 600mm Width Pvc Ceiling Panel Production Line Pvc Ceiling Making Machine Home Decoration 2

Our Services

1. Before order: We will provide relevant information on various technology and business consulted by customers. If clients want to visit our company, we will offer all they need for convenience.



2. During order: company designs groundsill installation chart for water, electricity and gas of equipment basing on real condition and customers’ requirements and provides detail order list and matching manufacturer for reference for customer.



After equipment arrival, our service personnel will arrive at posted locale for installation, debugging, training and technology transfer till customers can operate independently and manufactures eligible product. Service personnel have to arrive at customer’s locale in time when we provide service for client again.



3. After order: we will offer 12months after sales service freely, but our service will be life-long. if some parts are broken, we will send them by express, air or ship as soon as we can.
