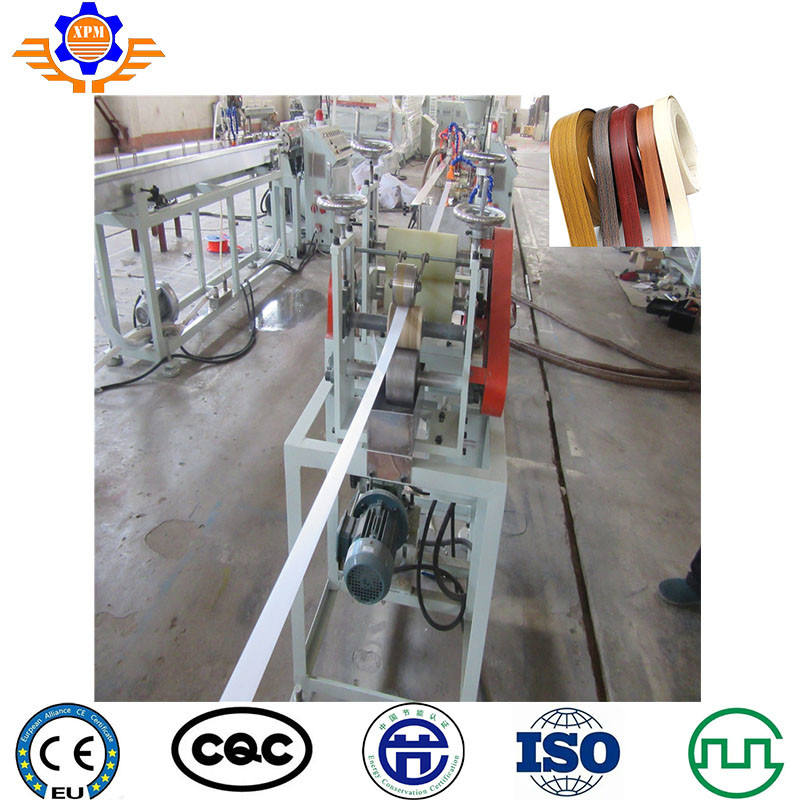

Single Screw PVC Profile Extrusion Line SJ65 / 25 PVC Edge Banding Extrusion Line
| Place of Origin | ZHANGJIAGANG,CHINA |
|---|---|
| Brand Name | XPM |
| Certification | CE,ISO |
| Model Number | SJSZ |
| Minimum Order Quantity | 1 SET |
| Price | 20,000-30,000 USD/SET |
| Packaging Details | WOODEN CASE PACKING AND PLASTIC FILM |
| Delivery Time | 45 WORKING DAYS |
| Payment Terms | T/T |
| Supply Ability | 20 SETS PER MONTH |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Contactor Brand | Siemens | Raw Material | PVC |
|---|---|---|---|
| Color | Customized | Screw | Conical Twin Screw |
| Warranty | 1 Year | Inverter | ABB |
| Voltage | 220V,380V Or Customized | Application | Decorative Materials |
| Output | 50-100Kg/H | Motor Power | 37Kw |
| High Light | Single Screw PVC Profile Extrusion Line,3 Phase PVC Profile Extrusion Line,100Kg/H PVC Edge Banding Extrusion Line |
||
Product Description
PVC Edge Banding Tape Extrusion Line, PVC edge banding tape making machine
Product Description
PVC Edge Banding Tape Extrusion Line, PVC edge banding tape making machine
1. Our company is cooperating with many universities to develop the urgently needed plastic machine. It also absorbs advanced technology from abroad to achieve the purpose of supplying complete machine and technology.
2. PVC edge band making machine
3. The PVC edge band Extrusion Line is used for extruding PVC edgeband. The edgeband in the form of roll has its thickness of 0.5-4.0 mm and width of 5-300mm depending on the requirments. Its length is not limited. This product is featured by its good banding effect, easy operation and high utilization rate, therefore it is applicable to mechanical banding of solid furniture, composite doors and WPC doors.
Parameters of PVC Edge Banding Tape Extrusion Line, PVC edge banding tape making machine
| Item | Technical parameter |
| I. SJ65/25 Single Screw Extruder | |
| Supplier of electric control cabinet | Main transducer and feeder's transducer: Hitachi transducer; Air switch: |
| Output capacity | 80kg/h(approximate) |
| Inlet wire terminal of power source | 3-phase, 4-wire system |
| Motor power | Main motor:AC30kw |
| Temperature control curve type | Temperature fluctuating self-adjustment(PID type) |
| Temperature control meters, manometers and speedometers | RKC(Japan) temperature control system, Xiaogan Wuyue(China) sensor and high quality speedometers respectively. |
| Pressure display | With melt pressure display |
| Feeder type | Vacuum feeder(with drier), with enganced screw feeder |
| Connection of die head with flange | By bolts |
| The advantages over other companies in this field | Good shearing, high output, reasonable design, high accuracy and easy control, high-grade materials and parts with steadfast performance. |
| 1. Screw | |
| Diameter | 65mm |
| LD | 25:1 |
| Quantity | 1pcs |
| With gas vent or not | With |
| 2. Barrel | |
| Barrel type | Integer |
| Heating method | Air cooling unit. Special stainless cover and red copper electricity heater are used on the barrel |
| Heating zones | 7-zone |
| Total heating power | 60kw(approximate) |
| Temperature range | 50~300 |
| Cooling zones | 7-zone |
| Cooling system | 7X0.55kw |
| Cooling medium | Air cooling |
| Screw and barrel manufacturer | Zhangjiagang Saijia Machinery Technology Co., Ltd |
| Quality guarantee | Testing block and tested report are available. Guaranteed period is more than 10,000 working hours |
| Nitrid depth | 0.6~0.7mm |
| 3. Driving system and speed reducing system | |
| Main driving motor power | 18.5kw |
| Main motor working method | 3-phase asynchronous motor, connected to the gearbox by couple |
| Main motor rotating speed | |
| Gearbox type | Helical gear, hardened |
| Gears | Carburized and ground; The material is 20CrMoTi |
| Main motor speed-adjusting method | AC transducer |
| II.Haul-off unit | |
| Haul-off speed | 20-30m/min(adjustable) |
| Speed control method | Inverter |
| Motor power | 0.75kwX2 |
| III. Single disc winder | |
| Winding range | 15-25mm |
| IV. Mould | 1 set |
